Navigation System Overview, Through 10/31/2008

The optical MOST bus links the navigation system into the MMI Infotainment.

The navigation system is available from equipment version "MMI basic plus Navigation".

With the "MMI basic plus Navigation" version, the Navigation System with CD Drive Control Module -J401- is located in the glove compartment and contains the Radio -R- and the Front Information Display Control Head Control Module -J523-.

In the "MMI" version, the Navigation System with CD Drive Control Module -J401- is located in the left rear of the luggage compartment.

All versions are operated via the Multimedia Control Head -E380-.

MMI Basic Plus Navigation

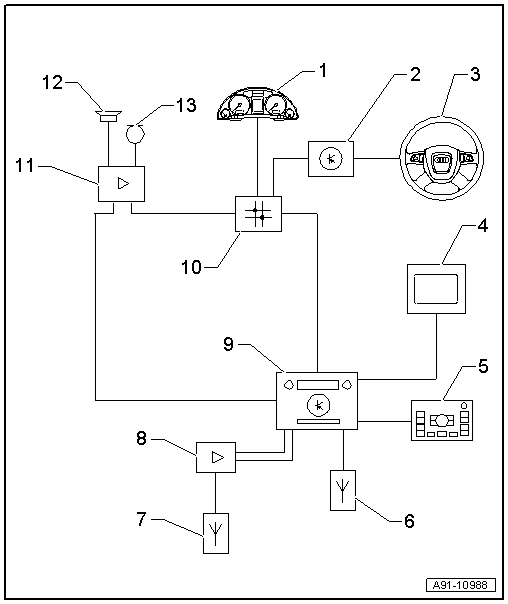

Fig 1: Identifying MMI Navigation

Courtesy of AUDI OF AMERICA, LLC

1. Instrument Cluster Control Module -J285- in the Instrument Panel
2. Steering Column Electronics Control Module -J527- on Steering Column at Steering Column Switch
3. Multifunction Steering Wheel
4. Front Information Display Control Head -J685- in Center of the Instrument Panel
5. Multimedia System Control Head -E380- in the Front of the Center Console
6. Radio/Telephone/Navigation System Antenna -R52-
7. Window Antennas
8. Antenna Amplifier 3 -R112- Behind the Luggage Compartment Side Trim Panel
9. Navigation System with CD Drive Control Module -J401- in the Left Side of the Glove Compartment
   • Contains the Front Information Display Control Head Control Module -J523- /Radio -R- /CD-Player -R89-
10. Data Bus On Board Diagnostic Interface -J533- Behind the Glove Compartment On the Left Side
11. Digital Sound System Control Module -J525- Behind the Luggage Compartment Left Side Trim
12. Sound Systems
13. Microphone Unit in Front Roof Module -R164- in the Front Interior Lamp -W1-

MMI

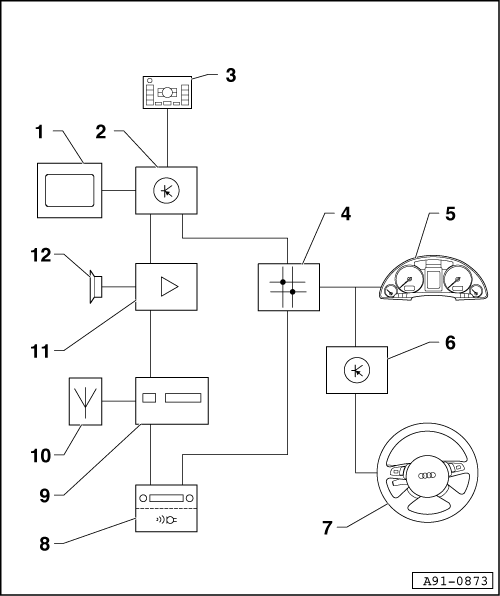

Fig 2: Identifying Navigation System- MMI, Layout

Courtesy of AUDI OF AMERICA, LLC

1. Front Information Display Control Head -J685- in Center of the Instrument Panel
2. Front Information Display Control Head Control Module -J523-, Behind the Instrument Panel
3. Multimedia System Control Head -E380- in the Front of the Center Console
4. Data Bus On Board Diagnostic Interface -J533- Behind the Glove Compartment On the Left Side
5. Instrument Cluster Control Module -J285- in the Instrument Panel
6. Steering Column Electronics Control Module -J527- on Steering Column at Steering Column Switch
7. Multifunction Steering Wheel
8. Radio -R- with Speech Input Control Module -J507- Behind Left Luggage Compartment Side Trim Panel
9. Navigation System with CD Drive Control Module -J401- Behind Luggage Compartment Left Side Trim
10. Radio/Telephone/Navigation System Antenna -R52-
11. Digital Sound System Control Module -J525- Behind he Luggage Compartment Left Side Trim
12. Sound Systems

Fault finding is performed via "Guided Fault Finding  " see Vehicle Diagnostic Tester.
