Navigation System with CD Drive Control Module -J401-, REMOVING AND INSTALLING. BASIC PLUS: Removing

-- Open the glove compartment.

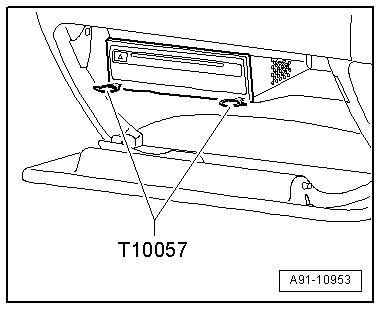

-- Insert two clips from the Radio Removal Tool T10057 into release slots on Navigation System with CD Drive Control Module -J401- until they engage. Points on the grip eyelets of tool face outward.

Fig 1: Removing Navigation System With CD Drive Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Pull Navigation System with CD Drive Control Module -J401- out of mounting frame.

-- Release and disconnect all connectors from the Navigation System with CD Drive Control Module -J401-.

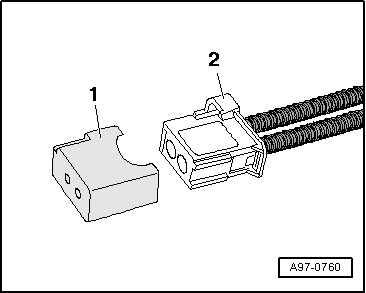

-- Insert the Fiber-Optic Repair Set - Connector Protective Caps VAS6223/9 -1- onto the MOST bus connector -2-.

Fig 2: Identifying Fiber-Optic Repair Set - Connector Protective Cap

Courtesy of AUDI OF AMERICA, LLC

-- Remove Radio Removal Tool T10057 by pressing locking tabs on Navigation System with CD Drive Control Module -J401-.
