Navigation System Connector Assignment, MMI, Through 11/03/2008

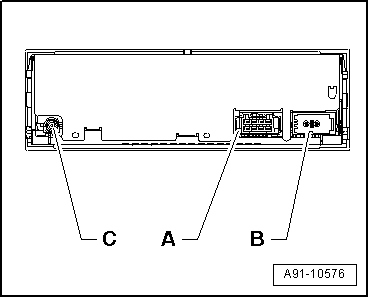

Fig 1: Identifying Navigation System With CD Drive Control Module J401 - MMI Connections, Overview

Courtesy of AUDI OF AMERICA, LLC

A -

8-Pin Connector -T8n-

B -

MOST bus

C -

GPS Connection from Radio/Telephone/Navigation System Antenna -R52-

NOTE:

Unlisted connector terminals are not assigned.

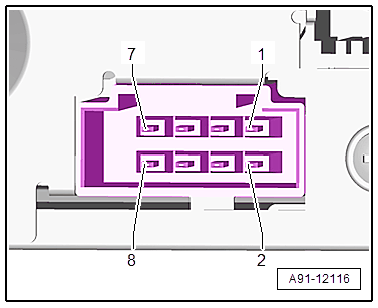

Fig 2: 1 - 8-Pin Connector -T8g-

Courtesy of AUDI OF AMERICA, LLC

1 -

Terminal 31

2 -

Terminal 30

5 -

Ring-break Diagnostic Cable

Fig 3: 2 - MOST Bus

Courtesy of AUDI OF AMERICA, LLC
