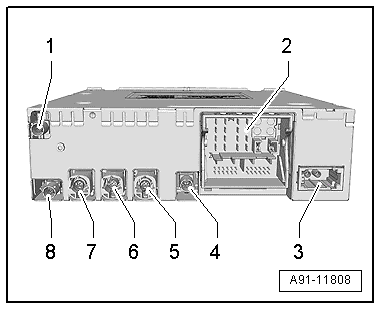

Navigation System Connector Assignment, MMI, From 11/03/2008

1. Not Assigned
2. Connection block with four multi-pin connectors
3. MOST bus
4. CVBS input from TV Tuner -R78-
5. 4-Pin Connector -T4al- /4-Pin Connector -T4am- to the Front Information Display Control Head -J685-
6. 4-Pin Connector -T4ap- to the External Audio Source Connection -R199- /Internet Access Control Module - J666-, from MY 2013
7. Not Assigned
8. GPS Connection from Radio/Telephone/Navigation System Antenna -R52-

2 - Connection Block with Four Multi-Pin Connectors

1. LF mute wire from preliminary setup for cell phone preparation
2. Power Supply to Multimedia System Control Head -E380-
3. Wake UP to Multimedia System Control Head -E380-
4. Not Assigned
5. Not Assigned
6. Res MU to Multimedia System Control Head -E380-
7. Ring-break Diagnostic Cable

2 -

Microphone IN (+) for the Microphone Unit in Front Roof Module -R164- (Right Front Microphone -R141-)

3 -

Microphone IN (-) for the Microphone Unit in Front Roof Module -R164- (Right Front Microphone -R141-)

5 -

CVBS cable (-) for the Rearview Camera System Control Module -J772-

11 -

CVBS cable (+) for the Rearview Camera System Control Module -J772-

All pins are connected to the External Audio Source Connection -R199-.

1. LF-In ground
2. Right LF-In
3. USB (+5V), not on Internet Access Control Module -J666-, from MY 2013
4. USB, ground
5. Not Assigned
6. Detect, not on Internet Access Control Module -J666-, from MY 2013
7. Left LF-In
8. LF-In ground shielding
9. CVBS cable (+)
10. CVBS cable (-)
11. iPod data
12. iPod data

Following pins are also still connected to the Internet Access Control Module -J666- (from MY 2013).

3 -

USB, +5V

4 -

USB, ground

6 -

Detect

10 -

Data from Multimedia System Control Head -E380-

11 -

Data to the Multimedia System Control Head -E380-

12 -

Terminal 31

14 -

Res BT from Multimedia System Control Head -E380-

15 -

Terminal 30

16 -

Ground to Multimedia System Control Head -E380-

1. Input
2. Output
