Chip Card Reader Control Module -J676- CONNECTOR ASSIGNMENTS, JAPAN THROUGH 11/03/2008

Chip Card Reader Control Module -J676-

NOTE:

Unlisted connector terminals are not assigned.

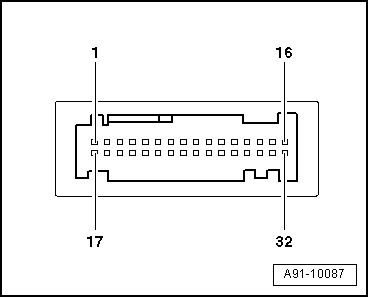

Fig 1: 32-Pin Connector -T32-

Courtesy of AUDI OF AMERICA, LLC

1-16 - to the Traffic Data Antenna -R173-

17 - VICS data wire to Navigation System with CD Drive Control Module -J401-

18 - Chamber 31 (ground shielding) to Navigation System with CD Drive Control Module -J401-

19 - VICS data wire from Navigation System with CD Drive Control Module -J401-

21 - Switch-On Signal to Navigation System with CD Drive Control Module -J401-

22 - Terminal 30

23 - ETC data to Navigation System with CD Drive Control Module -J401

24 - Chamber 31 (ground shielding) to Navigation System with CD Drive Control Module -J401-

25 - ETC data from Navigation System with CD Drive Control Module -J401-

28 - Terminal 31
