MMI Basic Plus Navigation
- The Front Information Display Control Head Control Module -J523- located in the glove compartment contains the Radio -R- /CD-Player -R89- /Navigation System with CD Drive Control Module -J401-
- CD Changer -R41- in the instrument panel
- External Audio Source Connection -R199- in the center console storage compartment
- Digital Sound System Control Module -J525- in the luggage compartment on the left rear side
- Basic/Basic Plus/Standard/Bang and Olufsen
- Multimedia System Control Head -E380- in the front of the center console
- Front Information Display Control Head -J685- in center of the instrument panel
- Digital Radio -R147- on the left side in the rear of the luggage compartment
- Cellular Telephone Preparation/Bluetooth Auto Telephone

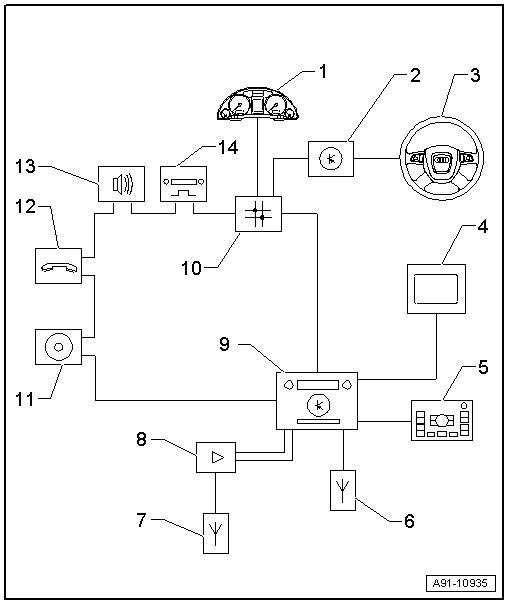

- Multifunction Steering Wheel
- Instrument Cluster Control Module -J285- in the Instrument Panel
- Steering Column Electronics Control Module -J527- on Steering Column at Steering Column Switch
- Multifunction Steering Wheel
- Front Information Display Control Head -J685- in Center of the Instrument Panel
- Multimedia System Control Head -E380- in the Front of the Center Console
- Radio/Telephone/Navigation System Antenna -R52-
- Window Antennas
- Antenna Amplifier 3 -R112- Behind the Left D-Pillar Trim Panel/Luggage Compartment Side Trim Panel
- Front Information Display Control Head Control Module -J523- Inside Glove Compartment
- MMI basic includes Radio -R- /CD-Player -R89-
- MMI basic plus Navigation contains the Radio -R- /CD-Player -R83- /Navigation System with CD Drive Control Module -J401-
- Data Bus On Board Diagnostic Interface -J533- Behind the Glove Compartment On the Left Side
- CD Changer -R41- in the Instrument Panel
External Audio Source Connection -R199- Inside the Center Console Storage Compartment, AUX IN
- Telephone Transceiver -R36- under the Front Passenger Seat
- Digital Sound System Control Module -J525- Behind the Luggage Compartment Left Side Trim
- Digital Radio -R147- Behind the Left Luggage Compartment Left Side Trim
