Information Electronics Control Module 1 -J794- overview

Information Electronics Control Module 1 -J794- is a 3rd generation MMI. Depending on the equipment level, the Information Electronics Control Module 1 -J794- contains the following known control modules from the 2nd generation:

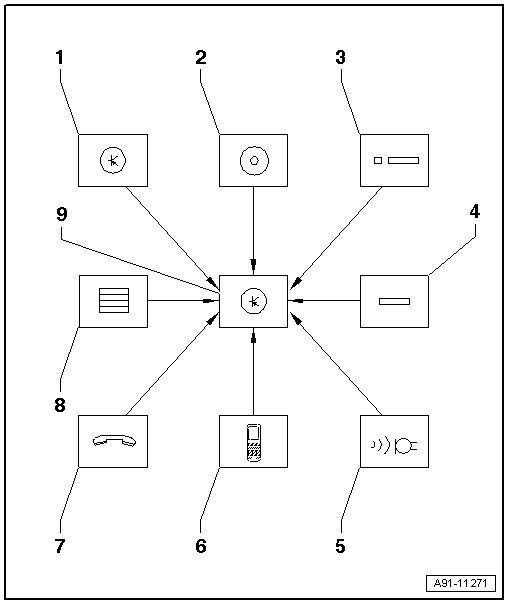

Fig 1: Identifying Information Electronics Control Module 1 -J794- MMI Overview

Courtesy of AUDI OF AMERICA, LLC

1. Front Information Display Control Head Control Module -J523-
2. CD Player -R89-
3. Navigation System with CD Drive Control Module -J401-
4. SD memory card reader
5. not installed
6. not installed
7. not installed
8. internal hard drive disc storage (HDD)
9. Information Electronics Control Module 1 -J794-
