Display Connector Assignment, MMI Through 11/03/2008.

Front Information Display Control Head -J685-

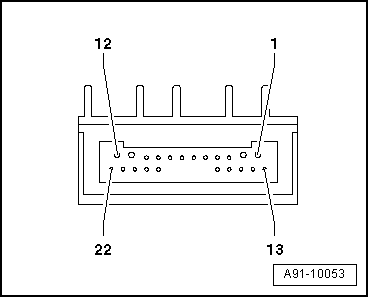

Fig 1: Front Information Display Control Head J685 Connectors (MMI)

Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the Front Information Display Control Head Control Module -J523-.

1. Voltage Supply
2. Ground
3. Not Assigned
4. Ground
5. TMP
6. Rx2 (+)
7. Rx2 (-)
8. FOTO rear
9. INV status
10. FOTO display
11. Ground
12. Ground
13. Rx0 (+)
14. Rx0 (-)
15. Ground
16. Rx1 (-)
17. Rx1 (+)
18. Rxclk (+)
19. Rxclk (-)
20. Cable Diag
21. Rx3 (-)
22. Rx3 (+)
