Component Location Overview - Infotainment System, Through 11/03/2008

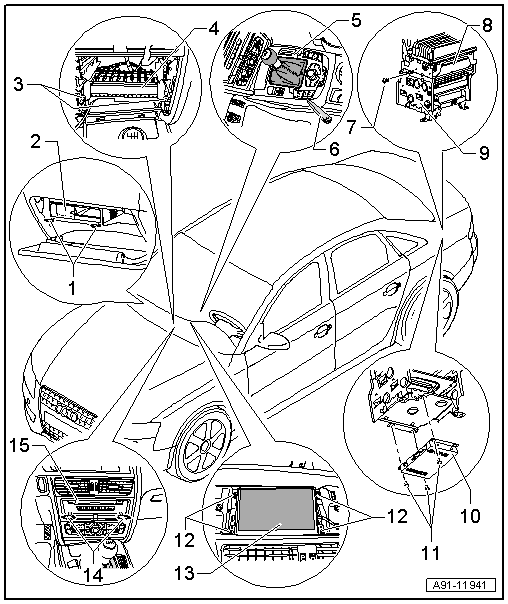

Fig 1: Component Location Overview - Infotainment System (Through 11/03/2008)

Courtesy of AUDI OF AMERICA, LLC

1. Radio Removal Tool T10057
2. External Audio Source Connection -R199-, AMI
   • Connector Assignments AMI (MMI), refer to CONNECTOR ASSIGNMENT AMI, MMI, THROUGH 10/31/2008 .
   • Removing and Installing, (AMI), refer to External Audio Source Connection -R199-, REMOVING AND INSTALLING, AMI .
3. Screw
   • Quantity: 2
   • 2 Nm

     - screw bracket

   • Quantity: 2
   • 2 Nm
4. Front Information Display Control Head Control Module -J523-
   • Connector assignment (through 11/03/2008), refer to MMI CONNECTOR ASSIGNMENT, THROUGH 11/03/2008 .
   • Removing and installing (through 11/03/2008), refer to Front Information Display Control Head Control Module -J523-, REMOVING AND INSTALLING, THROUGH 11/03/2008 .
5. Multimedia System Control Head -E380-
   • Connector assignment, refer to Multimedia System Control Head -E380- CONNECTOR ASSIGNMENT .
   • Removing and installing, refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING
6. Trim Removal Wedge 3409
7. Screw
   • Quantity: 2
   • 4.5 Nm
8. Radio -R-
   • Connector assignment (through 11/03/2008), refer to Radio -R- CONNECTOR ASSIGNMENT, MMI, THROUGH 11/03/2008. .
   • Removing and installing (through 11/03/2008), refer to Radio - R-, REMOVING AND INSTALLING, MMI, THROUGH 11/03/2008 .
9. Rack
10. Digital Radio -R147-
    • Connector assignment (through 11/03/2008), refer to Digital Radio -R147- CONNECTOR ASSIGNMENT, MMI, THROUGH 11/03/2008 .
    • Removing and installing (through 11/03/2008), refer to Digital Radio -R147-, REMOVING AND INSTALLING, THROUGH 11/03/2008 .
11. Screw
    • Quantity: 3
    • 4.5 Nm
12. Bolt
    • Quantity: 4
    • 2 Nm
13. Front Information Display Control Head -J685-
    • Connector assignment, MMI (through 11/03/2008), refer to DISPLAY CONNECTOR ASSIGNMENT, MMI THROUGH 11/03/2008. .
    • Removing and installing, refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING
14. Radio Removal Tool T10057
15. CD Changer -R41-
    • Pin assignment (MMI), refer to CD Changer -R41- CONNECTOR ASSIGNMENT, MMI .
    • Removing and installing (through 11/03/2008), refer to CD Changer -R41-, REMOVING AND INSTALLING, THROUGH 11/03/2008 .
