Shift Unit, Input Shaft, Output Shafts, Gearshift Rod, Differential And Bevel Box: Notes

Special tools and workshop equipment required

Holding Plate VW 309
Transmission Support VW 353
Thrust Tube VW 455
Slide Hammer-Complete Set VW 771
Adapter VW 771/44
Support Bridge T10323
Socket And Extended Bit T10107 A
Counter-Hold Tool 3435
Thrust Piece T10042
Counter Hold Tool T10371
Thrust Piece T10233
Hot Air Blower V.A.G 1416
Internal Puller 14.5 to 18.5 mm, for example Kukko 21/02
Separating Tool 5 to 60 mm, for example, Kukko 17/0
Counter-Support Kukko 22/1
Front and Rear Bearing Tool 3348/2
Sealing paste AMV 188 200 03
Grease G 060 735 A2

Removing

Fig 1: Attaching Transmission To VW 353 With Bolts

Courtesy of AUDI OF AMERICA, LLC

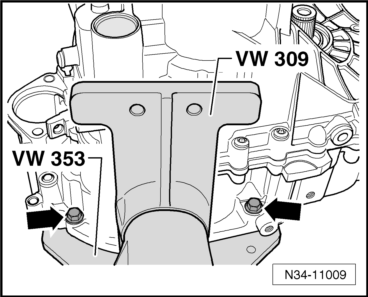

-- Attach the transmission to the VW 353 with the bolts -arrows-.

-- Remove the right stub shaft bolt with the T10107 A; when doing this, counter-hold the stub shaft.

Fig 2: Removing Right Stub Shaft Bolt With T10107 A

Courtesy of AUDI OF AMERICA, LLC

-- Remove the 4 bevel box connecting bolts -arrows- (only 3 shown in illustration) on the manual transmission.

-- Carefully push the bevel box off the manual transmission and remove it.

-- Remove the bolts -arrows-.

Fig 3: Identifying Slave Cylinder Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the clutch slave cylinder with release bearing -A-.

-- Place a drip tray under the transmission.

-- Drain the transmission fluid.

-- Remove the clutch housing bolts to the transmission housing.

-- Mount the VW 455 over the input shaft on the clutch housing and secure the input shaft -B-.

Fig 4: Mounting VW 455 Over Input Shaft On Clutch Housing And Secure Input Shaft

Courtesy of AUDI OF AMERICA, LLC

-- Tension the separating tool 5 to 60 mm -A-, for example Kukko 17/0, tightly behind the input shaft splines.

The back of the separating tool must touch the thrust tube free-of-play.

-- Move the shift unit selector shaft into the neutral position.

Fig 5: Moving Shift Unit Selector Shaft Into Neutral Position

Courtesy of AUDI OF AMERICA, LLC

-- Remove the back-up lamp switch -F4- -A-.

-- Remove the bolts from the shift unit -B- on the transmission housing.

-- Remove the shift unit from the transmission housing; while doing this, rotate the shift unit 180° when removing it.

The shift unit shift fingers must be guided through the selector rods.

-- Remove the locking plate -1- (if equipped).

Fig 6: Removing Locking Plate

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bracket -2- (if equipped).

Fig 7: Removing Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Push the rubber through the center of the cover -C- using a screwdriver.

Fig 8: Pushing Rubber Through Center Of Cover Using A Screwdriver

Courtesy of AUDI OF AMERICA, LLC

-- Pry the sealing cap out of the transmission housing.

-- If necessary, pull the cap off the transmission housing.

A - Counter-support, for example, Kukko 22/1

B - Internal puller 14.5 to 18.5 mm, for example, Kukko 21/02

Remove the locking ring -C- from the input shaft grooved ball bearing as follows:

Fig 9: Removing Locking Ring From Input Shaft Grooved Ball Bearing

Courtesy of AUDI OF AMERICA, LLC

-- Hold one end of the locking ring with the screwdriver -A-.

-- Pry the other end of the locking ring out of the groove in the grooved ball bearing -arrow- with the second screwdriver -B-.

-- Reposition the screwdriver -B- and pry the locking ring out further.

-- Counter hold the stub shaft using the T10371 and remove the bolt from the left stub shaft -A-.

Fig 10: Counter Hold Stub Shaft Using T10371 And Remove Bolt From Left Stub Shaft

Courtesy of AUDI OF AMERICA, LLC

-- Remove the stub shaft.

-- Remove all the bolts for the transmission housing to clutch housing.

NOTE:

If bolts -B- are present, then these do not need to be removed in order to remove the transmission housing.

-- Install the VW 771/44 all the way into the threaded bore in the transmission housing and secure it with the nut -A-.

Fig 11: Installing VW 771/44 Into Threaded Bore In Transmission Housing And Secure It With Nut

Courtesy of AUDI OF AMERICA, LLC

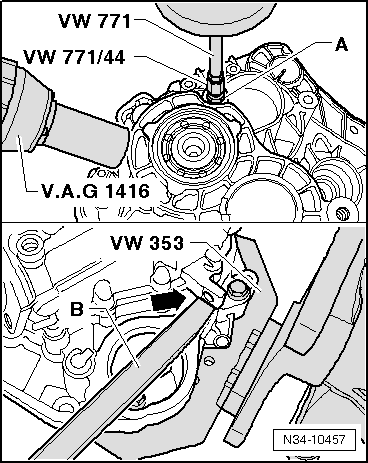

-- Heat transmission housing using, for example, the V.A.G 1416, in the area of the bearing seat for grooved ball bearing/input shaft to approximately 100 °C (212 °F) for approximately 10 minutes.

-- Separate the transmission housing from the clutch housing using the VW 771. At the same time separate the transmission housing on the housing brace -arrow- from the clutch housing with a lever -B-.

-- Remove the separating tool -A- and the VW 455 from the input shaft -B-.

Fig 12: Removing Separating Tool And VW 455 From Input Shaft

Courtesy of AUDI OF AMERICA, LLC

-- Remove the switching rockers for reverse gear -A-.

Fig 13: Removing Switching Rockers For Reverse Gear

Courtesy of AUDI OF AMERICA, LLC

-- Carefully bring the transmission into a slightly angled position if necessary.

Fig 14: Carefully Bring Transmission Into A Slightly Angled Position If Necessary

Courtesy of AUDI OF AMERICA, LLC

-- Lift the input shaft -1- in direction of -arrow- just enough until it is possible to insert the 3435.

-- Swivel the transmission back into its original horizontal position.

-- Attach the stub shaft to the differential -1- ; this way the differential can be raised in the following work steps.

Fig 15: Attaching Stub Shaft To Differential This Way Differential Can Be Raised

Courtesy of AUDI OF AMERICA, LLC

-- Remove the output shaft for 3rd and 4th gear -2- together with the selector rod -3-.

-- Carefully bring the transmission into a slightly angled position.

Fig 16: Carefully Bring Transmission Into A Slightly Angled Position

Courtesy of AUDI OF AMERICA, LLC

-- Push the output shaft for 1st and 2nd gear -B- all the way up.

-- Then remove the reverse gear output shaft -A-.

CAUTION:

When the transmission is in an angled position, components of the transmission could come loose.

To prevent this, move the transmission back into its original horizontal position.

-- Then remove the 1st and 2nd gear output shaft -B- together with the selector rod -C- from the clutch housing.

-- Remove the input shaft -1- together with the selector rod -2-.

Fig 17: Removing Input Shaft Together With Selector Rod

Courtesy of AUDI OF AMERICA, LLC

-- Remove the differential -3- on the stub shaft.

-- Remove the input shaft seal CLUTCH HOUSING List Item:Input Shaft Seal.

NOTE:

Always replace the grooved ball bearing on the input shaft. Refer to INPUT SHAFT OVERVIEW INPUT SHAFT OVERVIEW .

Installing

Press the new grooved ball bearing onto the input shaft. Refer to INPUT SHAFT OVERVIEW INPUT SHAFT OVERVIEW .
For the correct tightening specifications, refer to TRANSMISSION HOUSING AND GEARSHIFT UNIT OVERVIEW .

-- Mount the T10323 as illustrated.

Fig 18: Mounting T10323

Courtesy of AUDI OF AMERICA, LLC

-- Install the input shaft -1- together and the selector rod for 5th and 6th gears into the clutch housing.

Fig 19: Installing Input Shaft Together And Selector Rod For 5Th And 6Th Gears Into Clutch Housing

Courtesy of AUDI OF AMERICA, LLC

Turn the spindle on the T10323 and lift the input shaft -1- to dimension -a-.

-a- = 15 mm

-- Attach the left stub shaft to the differential -A- ; this way the differential can be raised in the following work steps.

Fig 20: Attaching Left Stub Shaft To Differential

Courtesy of AUDI OF AMERICA, LLC

-- Install the differential.

A second technician is needed to perform the following work.

-- Lift the differential in direction of -arrow- (2nd technician).

-- First place the 1st and 2nd gear input shaft -1- with the gearshift rod -2- in the bearing seat and then move it toward the input shaft -3-.

-- Lift the 1st and 2nd gear output shaft on the gear wheel -arrow A- and swing it toward the input shaft (2nd technician).

Fig 21: Lift 1St And 2Nd Gear Output Shaft On Gear Wheel And Swing It Toward Input Shaft

Courtesy of AUDI OF AMERICA, LLC

-- Guide the reverse gear output shaft -1- under the splines on the gear wheel -arrow A- and place it in the bearing seat -arrow B-.

Turn the spindle on the T10323 and lower the input shaft approximately 10 mm.

-- Install the 3rd and 4th gear output shaft -2- together with the 3rd and 4th gear gearshift rod -1-.

Fig 22: Installation Position, 3rd and 4th Gear Selector Rod:

Courtesy of AUDI OF AMERICA, LLC

The shorter brace -arrow- points to the clutch housing.

-- Remove the left stub shaft -3- from the differential.

-- Lower the input shaft just enough -A- by turning the spindle on the T10323 so that it remains slightly tensioned (lifted approx. 1 mm).

Fig 23: Lower Input Shaft

Courtesy of AUDI OF AMERICA, LLC

-- Place the reverse gear switching rockers -A- into the reverse gear output shaft slide locking collar.

Fig 24: Placing Reverse Gear Switching Rockers Into Reverse Gear Output Shaft Slide Locking Collar

Courtesy of AUDI OF AMERICA, LLC
