ABS Control Module Connector End View (J104, T47)
ABS Control Module Connector End View (J104, T47)

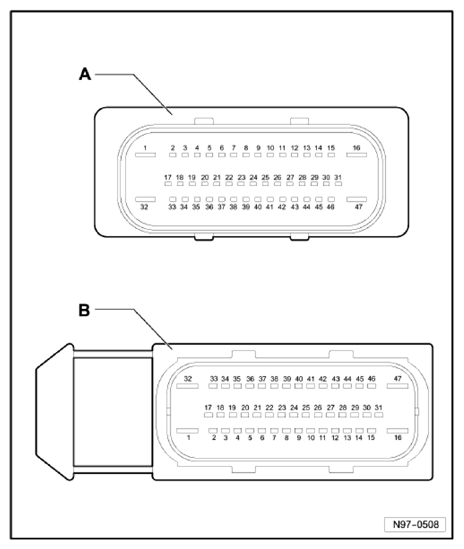

Fig 1: ABS Control Module Connector End View (J104, T47)
A
ABS Control Module -J104-
B
47-Pin Connector -T47-, black on wiring harness
