Fastener Tightening Specifications
WARNING: This page is about a different variant/trim than selected.
| Components |
Fastener Size |
Nm |
| Camshaft Position (CMP) Sensor |
- |
9 |
| Knock Sensor |
- |
20 |
| Spark Plug |
- |
30 |

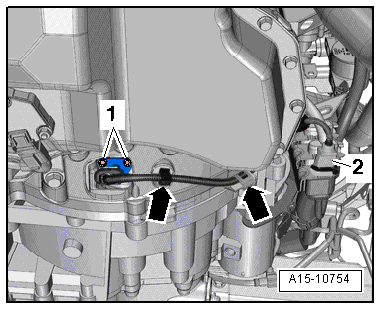

Engine Speed (RPM) Sensor -G28- Tightening Specification
Courtesy of AUDI OF AMERICA, LLC
-- Tighten the bolts -1- to 5 Nm.

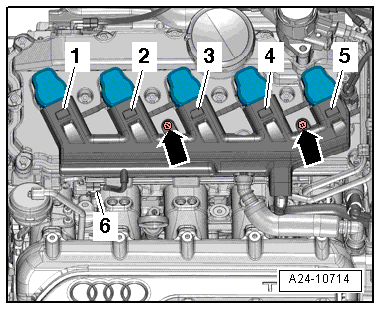

Ignition Coil Connectors - Tightening Specification
Courtesy of AUDI OF AMERICA, LLC
-- Tighten bolts -arrows- to 5 Nm.
