Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Open the floor console.
GFD136931Courtesy of FORD MOTOR COMPANY

  1. 2.

    Remove the media hub.
    • Disconnect the electrical connector(s).
GFD136932Courtesy of FORD MOTOR COMPANY

  1. 3.

    Remove the floor console. For additional information, refer to Instrument Panel and Console .

  1. 4.

    Remove the USB cable following the routing shown.
    • Disconnect the connection to the Accessory Protocol Interface Module(APIM).

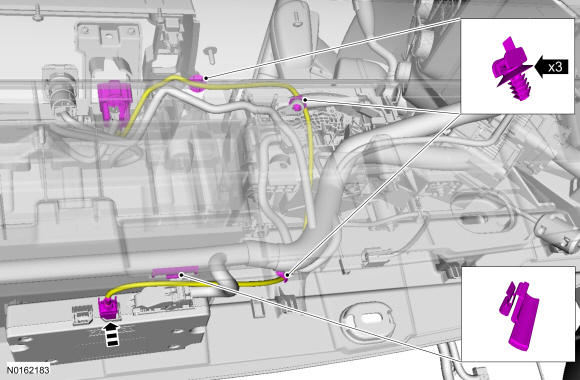

GFD136933Courtesy of FORD MOTOR COMPANY

  1. 5.

    To install, reverse the removal procedure.
