Plenum Chamber: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the heater core and evaporator core housing. Refer to Heater Core And Evaporator Core Housing .

2.

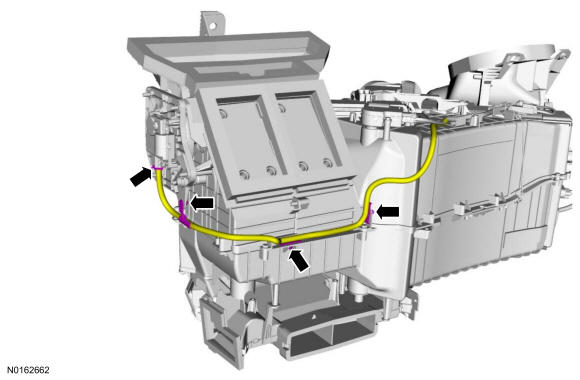

Disconnect the mode door actuator electrical connector and detach the wire harness retainers.

Courtesy of FORD MOTOR COMPANY

3.

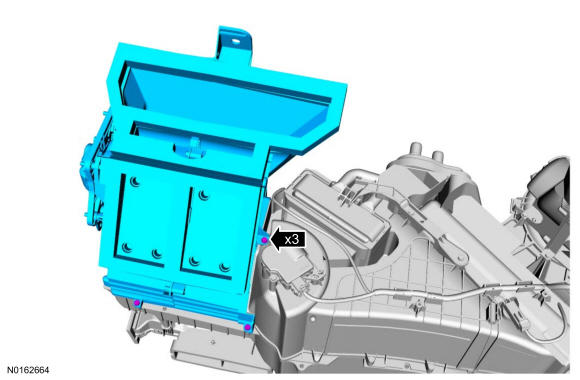

Remove the plenum chamber screws.

Courtesy of FORD MOTOR COMPANY

4.

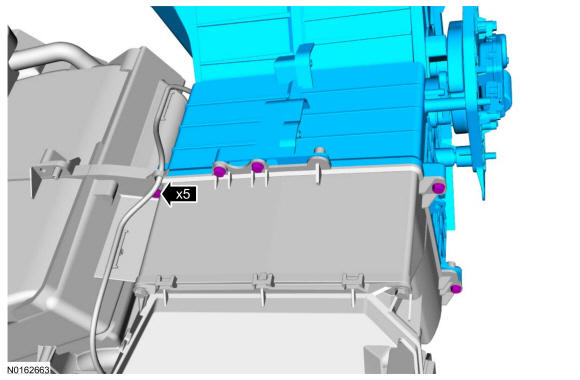

Remove the plenum chamber screws and remove the plenum chamber.

Courtesy of FORD MOTOR COMPANY
