Data List / Active Test [10/2013 - ]

WARNING: This page is about a different car, the 2014 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. DATA LIST

    HINT:

    Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

    NOTE:
    • When using the Techstream with the engine switch off, connect the Techstream to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the Techstream and the vehicle begins. Then select the vehicle type under manual mode and enter the following menus: Body Electrical / Smart Key. While using the Techstream, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the Techstream and the vehicle.
    • In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / (desired system) / Data List.
    5. Read the Data List according to the display on the Techstream.
      POWER SOURCE CONTROL

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Shift P Signal Shift position P/ON or OFF ON: Shift lever in P
      OFF: Shift lever not in P
      • Use this item to determine if the shift position switch is malfunctioning.
      • The engine cannot be started when this item is OFF.
      Steering Unlock Switch State of steering unlock sensor signal output from steering lock actuator assembly/ON or OFF ON: Steering unlocked
      OFF: Steering locked
      • When the shift lever is in P and the engine switch is off, if any door is opened or closed, the steering is locked.
      • When the electrical key transmitter sub-assembly is in the cabin and the engine switch is turned on (ACC) or on (IG), the steering unlocks.
      • The engine cannot be started when the steering unlock sensor signal is OFF.
      Stop Light Switch1 State of brake pedal/ON or OFF ON: Brake pedal depressed
      OFF: Brake pedal released
      • Use this item to determine whether the stop light switch is malfunctioning.
      • The engine cannot be started when this item is OFF.
      • When this item is malfunctioning, the engine can be started by pressing and holding the engine switch for a certain period of time.
      Start Switch1 Engine switch 1 status/ON or OFF ON: Engine switch pressed
      OFF: Engine switch not pressed
      • If the engine switch is pressed for a short time, the display may not change.
      • Use this item to determine whether the engine switch input signal is malfunctioning.
      Start Switch2 Engine switch 2 status/ON or OFF ON: Engine switch pressed
      OFF: Engine switch not pressed
      • Backup for engine switch 1. However, when the engine switch is pressed and held, the control functions only when both engine switch 1 and 2 are normal.
      • Behaves the same way as engine switch 1.
      Neutral SW/ Clutch SW Shift position (P and N)/ON or OFF ON: Shift lever in P or N
      OFF: Shift lever in any position other than P or N
      • Use this item to determine whether the park/neutral position switch is malfunctioning.
      • When the engine cannot be started due to a park/neutral position switch malfunction, OFF is displayed.
      Latch Circuit Status of IG related backup circuits/ON or OFF ON: Engine switch on (IG)
      OFF: Engine switch off
      • Displays in almost the same manner as the IG1 and IG2 relays.
      • When the engine switch is on (ACC), OFF is displayed.
      IG1 Relay Monitor(Outside) IG1 relay coil voltage monitor status/ON or OFF ON: Engine switch on (IG)
      OFF: Engine switch off
      • Use this item to determine whether the IG1 relay is malfunctioning.
      • When the engine switch is on (ACC), OFF is displayed.
      IG1 Relay Monitor(Inside) IG1 relay activation/ON or OFF ON: Engine switch on (IG)
      OFF: Engine switch off
      • Use this item to determine whether the IG1 relay is malfunctioning.
      • When the engine switch is on (ACC), OFF is displayed.
      IG2 Relay Monitor(Outside) IG2 relay coil voltage monitor status/ON or OFF ON: Engine switch on (IG)
      OFF: Engine switch off
      • Use this item to determine whether the IG2 relay is malfunctioning.
      • When the engine switch is on (ACC), OFF is displayed.
      IG2 Relay Monitor(Inside) IG2 relay activation/ON or OFF ON: Engine switch on (IG)
      OFF: Engine switch off
      • Use this item to determine whether the IG2 relay is malfunctioning.
      • When the engine switch is on (ACC), OFF is displayed.
      Starter Request Signal Engine start request signal status/ON or OFF ON: With the shift lever in P and brake pedal depressed, the engine switch is pressed and held
      OFF: After approx. 1 second has elapsed, the engine switch is released
      • When the engine cannot be started due to a start request signal malfunction, OFF is displayed.
      • When the engine switch is pressed, the duration of time that ON is displayed will be extremely short. As such, the engine switch needs to be pressed and held for a certain period of time.
      ACC Relay Monitor ACC relay activation/ON or OFF ON: Engine switch on (ACC)
      OFF: Engine switch off
      • When the engine switch is on (IG), ON is displayed.
      • While the engine is cranking, OFF is displayed.
      Engine Condition Engine state/Stop or Run Stop: Engine stopped
      Run: Engine running      		 -
      Vehicle Speed Signal Vehicle being driven or stopped/Stop or Run Stop: Vehicle stopped
      Run: Vehicle being driven at 5 km/h (3 mph) or more      		 -
      Power Supply Condition Power supply state/IG2 ON, ST ON, All OFF, IG1 ON or ACC ON All OFF: Engine switch off (ACC and IG)
      ACC ON: Engine switch on (ACC)
      IG1 ON: Engine switch on (IG) (IG1 relay on)
      IG2 ON: Engine switch on (IG) (IG2 relay on)
      ST ON: Sending engine start request signal      		 Since the IG1 and IG2 relays turn on at approximately the same time, IG1 ON may not be displayed (the IG1 relay turns on for a very short time).
      Powertrain Type Vehicle identification/HV-AT, Cnv-MT, Cnv-AT, Cnv-MMT, S&S-MT, S&S-AT or S&S-MMT Cnv-AT: Conventional A/T models (w/o hybrid system) -
      IG1 Circuit IG1 relay coil circuit malfunction/OK or NG OK: Circuit normal
      NG: Circuit malfunctioning
      • Use this item to determine whether the IG1 relay is malfunctioning.
      • When the engine cannot be started due to an IG1 relay malfunction, NG is displayed.
      IG2 Circuit IG2 relay coil circuit malfunction/OK or NG OK: Circuit normal
      NG: Circuit malfunctioning
      • Use this item to determine whether the IG2 relay is malfunctioning.
      • When the engine cannot be started due to an IG2 relay malfunction, NG is displayed.
      Starter SW Sig Mismatch Engine switch signal 1 and 2 do not match/Yes or No Yes: Switch malfunctioning (Engine switch signal 1 and 2 do not match)
      No: Switch normal      		 Even when Yes is displayed, the engine can be started. However, emergency engine off while driving by pressing and holding the engine switch, and when the brakes are malfunctioning, emergency engine starting by pressing and holding the engine switch cannot be performed.
      Park Signal Mismatch P position signal malfunction/Yes or No Yes: Signal malfunction (CAN communication and direct line signal do not match)
      No: Signal normal      		 Even when Yes is displayed, it is still possible to turn the engine switch off (the power source mode will not be stuck in on (ACC) or on (IG)).
      Str Lock/Unlock Wait T-Out Steering lock or unlock malfunction/Yes or No Yes: Lock or unlock malfunction (e.g. steering lock is stuck etc.)
      No: Lock and unlock normal      		 When the engine cannot be started due to a steering lock or unlock malfunction, Yes is displayed.
      Key Certif Wait T-Out Key verification malfunction/Yes or No Yes: Verification error (Detected due to the electrical key transmitter sub-assembly ID code and the ID code stored in the certification ECU (smart key ECU assembly) not matching)
      No: Verification normal      		 When the engine cannot be started due to a key verification error, Yes is displayed.
      Number of Diagnosis Code Number of DTCs/0 to 255 - -

      HINT:

      To check if the Data List display changes, get into the vehicle while carrying an electrical key transmitter sub-assembly and perform the following operations with the engine switch off and the shift lever in P.

      *1: Press the engine switch with the brake pedal released and check that the engine switch turns on (ACC).

      *2: Press the engine switch with the brake pedal released and check that the engine switch turns on (IG).

      *3: Depress the brake pedal (stop light switch is on).

      *4: Press the engine switch with the brake pedal depressed and check that the engine starts.

      *5: Press the engine switch with the brake pedal depressed and check that the engine switch turns off.

      *6: Release the brake pedal.

      *7: Open a door.

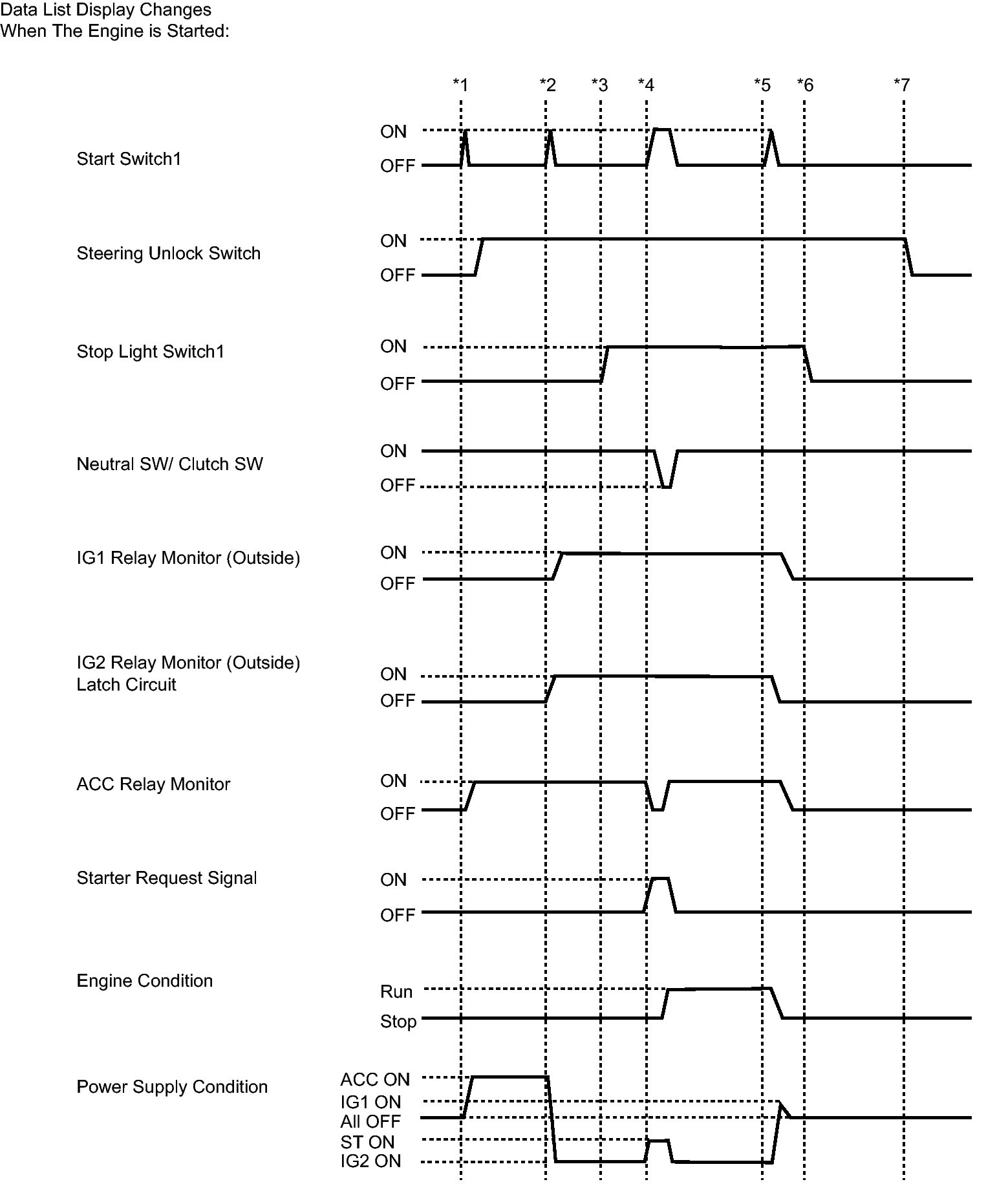

      Fig 1: Identifying Data List Display Changes (When The Engine Is Started) Chart
      GTY369599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      SMART KEY

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Ignition Switch Certification ECU (smart key ECU assembly) IG power supply input status/ON or OFF ON: Engine switch on (IG)
      OFF: Engine switch off      		 When the engine switch is on (ACC), OFF is displayed.
      #Codes Number of DTCs/0 to 255 - -
      Immobilizer Immobilizer system status determined by certification ECU (smart key ECU assembly)/Set or Unset Set: Immobilizer set (engine start prohibited) (engine switch off)
      Unset: Immobilizer unset (engine start permitted) (engine switch on (ACC) or on (IG))      		 The engine cannot be started when Set is displayed.
      HINT:
      • The security indicator light blinks when Set is displayed.
      • The security indicator light is linked with set/unset of the immobilizer and not linked with lock/unlock of the steering.
      Steering Lock Sleep Cond Steering lock ECU sleep availability/Yes or No Yes: Sleep available
      No: Sleep not available      		 -
      Steering Lock Start Cond Steering lock ECU wake up signal status/Yes or No Yes: Wake up signal sent
      No: Wake up signal not sent      		 -
      Engine Start Condition Status of engine start permission signal determined by steering lock ECU (steering lock actuator assembly) and sent to certification ECU (smart key ECU assembly)/OK or NG OK: Engine start permitted
      NG: Engine start prohibited
      • When OK is displayed, the certification ECU (smart key ECU assembly) receives an unlock confirmation signal from the steering lock ECU (steering lock actuator assembly) and makes fuel injection and engine starting possible.
      • The engine cannot be started when NG is displayed.
      Sensor Value History of malfunction of position sensor in steering lock ECU (steering lock actuator assembly)/OK or NG (Past) OK: History of malfunction for the lock or unlock sensor in the steering lock ECU (steering lock actuator assembly) does not exist.
      NG (Past): History of both the lock and unlock sensors in the steering lock ECU (steering lock actuator assembly) being on exists. (Under normal operation, neither sensor is on.)      		 When NG (Past) is displayed, either the position sensor in the steering lock ECU (steering lock actuator assembly) or the assembly itself may be malfunctioning.
      Power Supply Short History of signal error (short) sent from certification ECU (smart key ECU assembly) to steering lock ECU (steering lock actuator assembly)/OK or NG (Past) OK: History of motor power source short does not exist
      NG (Past): History of motor power source short exists      		 This item displays history of a malfunction in the circuit between the certification ECU (smart key ECU assembly) and the steering lock ECU (steering lock actuator assembly).
      Motor Driver Short History of malfunction (short) in steering lock ECU (steering lock actuator assembly) motor circuit (DTC B2781 is stored)/OK or NG (Past) OK: History of short in the motor circuit does not exist
      NG (Past): History of short in the motor circuit exists      		 This item displays history of a malfunction in the steering lock motor circuit in the steering lock ECU (steering lock actuator assembly).
      Lock/Unlock Receive History of receiving an unlock request signal/Yes or No Yes: History of receiving an unlock request signal exists
      No: History of receiving an unlock request signal does not exist      		 -
      Lock Bar Stuck Error History of steering not being able to unlock properly when steering lock operates for a certain period of time/OK or NG (Past) OK: History of steering lock being stuck does not exist
      NG (Past): History of steering lock being stuck exists      		 -
      Push Start Error History of push-button start malfunction due to steering lock ECU (steering lock actuator assembly)/OK or NG (Past) OK: History of push-button start malfunction does not exist
      NG (Past): History of push-button start malfunction exists      		 -
      Engine Start Request Status of engine start permission signal determined by steering lock ECU (steering lock actuator assembly) and sent to certification ECU (smart key ECU assembly)/OK or NG OK: Signal received
      NG: Signal not received
      • When OK is displayed, the certification ECU (smart key ECU assembly) receives an unlock confirmation signal from the steering lock ECU (steering lock actuator assembly) and makes fuel injection and engine starting possible.
      • The engine cannot be started when NG is displayed.
      L Code Check Verification result between certification ECU (smart key ECU assembly) and steering lock ECU (steering lock actuator assembly)/OK or NG OK: Verification result normal
      NG: Verification result abnormal      		 When NG is displayed:
      • The ID code for the certification ECU (smart key ECU assembly) or steering lock ECU (steering lock actuator assembly) is not registered, or the certification ECU (smart key ECU assembly) or steering lock ECU (steering lock actuator assembly) is malfunctioning.
      • The steering cannot be locked.
      • The steering cannot be unlocked (the engine cannot be started).
      Unlock Request Receive Unlock request signal received state/OK or NG OK: Unlock request signal received within 10 seconds of engine switch turned on (IG) or on (ACC), or of an engine start operation being performed
      NG: Engine switch not turned on (IG) or on (ACC), and engine start operation not performed
      • The engine cannot be started when an unlock request signal cannot be received.
      • If OK is not displayed even though the steering unlock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.
      Lock Request Receive Lock request signal received state/OK or NG
      HINT:
      • The reception state is maintained for 10 seconds.
      • When 10 seconds or more elapse after receiving the signal, the item changes to "NG".
      		 OK: Lock request signal received for 10 seconds of any of the doors being opened with shift lever in P and engine switch off.
      NG: Except above      		 If OK is not displayed even though the steering lock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.
      L Code Check(Past) Verification result history between the certification ECU (smart key ECU assembly) and steering lock ECU (steering lock actuator assembly)/OK or NG (Past) OK: History of abnormal verification result does not exist
      NG (Past): History of abnormal verification result exists      		 -
      Steering Lock Steering lock ECU (steering lock actuator assembly) lock confirmation status/Set or Unset Set: Lock confirmed
      Unset: Lock not confirmed      		 When Unset is displayed, the steering is not locked.
      Steering Unlock Steering lock ECU (steering lock actuator assembly) unlock confirmation status/Set or Unset Set: Unlock confirmed
      Unset: Unlock not confirmed      		 When Unset is displayed, the steering is not locked (the engine cannot be started).
      Engine Start Indicator Smart warning light/ON or OFF Customization status displayed -

      HINT:

      To check if the Data List display changes, get into the vehicle while carrying an electrical key transmitter sub-assembly and perform the following operations with the engine switch off and the shift lever in P.

      *1: Press the engine switch with the brake pedal released and check that the engine switch turns on (ACC).

      *2: Press the engine switch with the brake pedal released and check that the engine switch turns on (IG).

      *3: Press the engine switch and check that the engine switch turns off.

      *4: Open any of the doors (steering locked).

      Fig 2: Identifying Data List Display Changes (When The Steering Wheel Is Locked/Unlocked) Chart
      GTY322552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STARTING CONTROL

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Starter SW Starter operation request/ON or OFF ON: Starter operation requested
      OFF: Starter operation not requested      		 When malfunctioning, the engine will not crank.
      Shift Position P or N Park/neutral position switch status/ON or OFF ON: Shift lever in P or N
      OFF: Shift lever in any position other than P or N      		 When malfunctioning, the engine will not crank.
      Starter Relay Starter relay voltage monitor/ON or OFF ON: ST relay on
      OFF: ST relay off      		 OFF is displayed when the engine cannot crank.
      Starting Control SW Starter request signal monitor/ON or OFF ON: Starting control switch on
      OFF: Starting control switch off      		 When malfunctioning, the engine cannot crank.
      Ignition IG2 status/ON or OFF ON: IG2 relay on
      OFF: IG2 relay off      		 -
      Engine Speed Engine speed/0 to 16383 r/min Fluctuates in accordance with engine speed -
      Number of DTCs Number of DTCs/0 to 255 - -

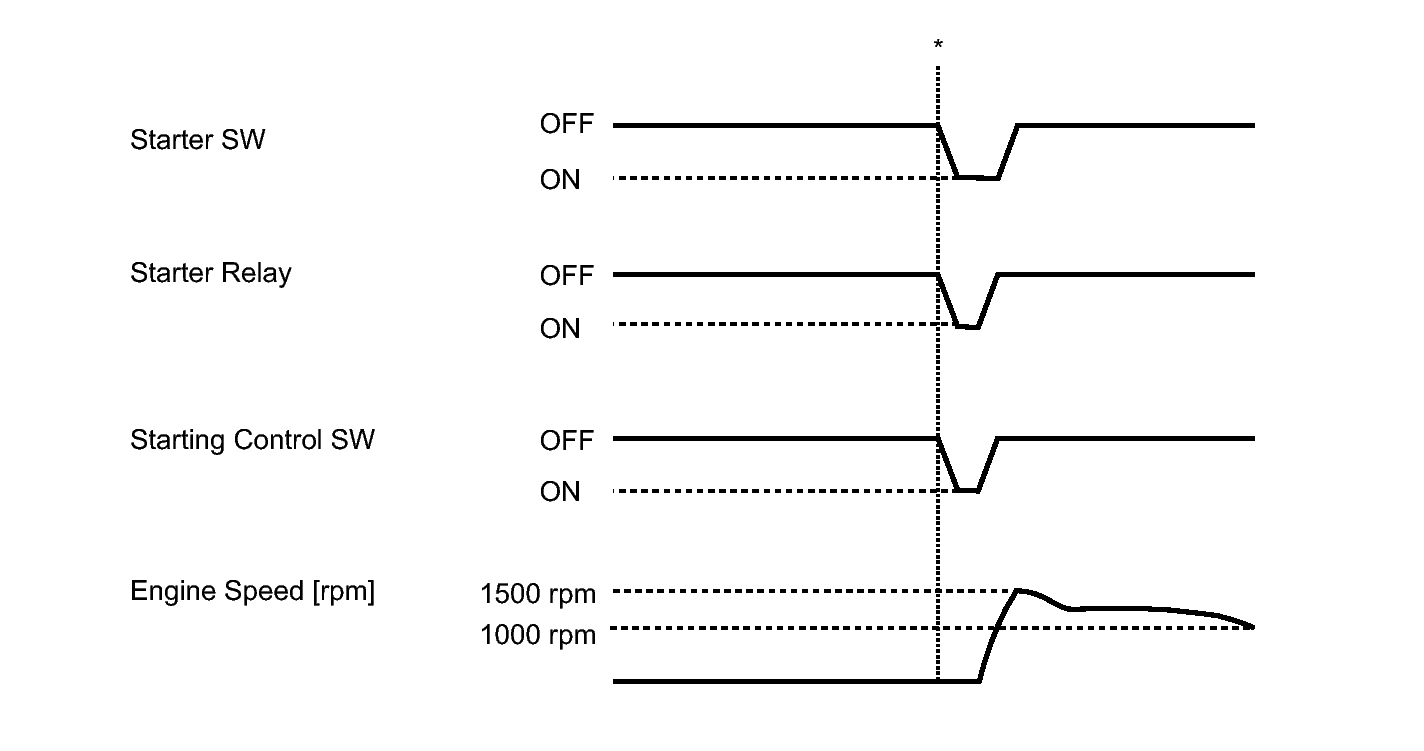

      Fig 3: Identifying Starting Control Switch Chart
      GTY365967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      *: Check that the engine starts when the engine switch is pressed with the power source mode on (IG), shift lever in P and brake pedal depressed.

      COMBINATION METER

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Vehicle Speed Meter Vehicle speed/Min.: 0, Max.: 255 Almost same as actual vehicle speed (Speedometer tester) -
  2. ACTIVE TEST

    HINT:

    Using the Techstream to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / (desired system) / Active Test.
    5. Perform Active Test according to the display on the Techstream.
    POWER SOURCE CONTROL

    Tester Display Test Part Control Range Diagnostic Note
    P Supply for Steering Lock Certification ECU (smart key ECU assembly) OFF/ON
    HINT:
    OFF: Power is not supplied.
    ON: Power is supplied.    		 When performing this Active Test, make sure the following condition is met:
    The engine switch is on (IG).
    SMART KEY

    Tester Display Test Part Control Range Diagnostic Note
    Power/Engine SW Light Engine switch light OFF/ON When performing this Active Test, make sure the following conditions are met:
    The engine switch illumination is off (15 seconds or more have elapsed since it turned from on to off) and the engine switch is on (ACC) or on (IG), or the engine is running.
    STARTING CONTROL

    Tester Display Test Part Control Range Diagnostic Note
    Activate the Starter Relay ST relay OFF/ON The electrical key transmitter sub-assembly is in the cabin and the engine is stopped.
scientia non olet · About LEMON Manuals
