Infotainment Microphone: Notes
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

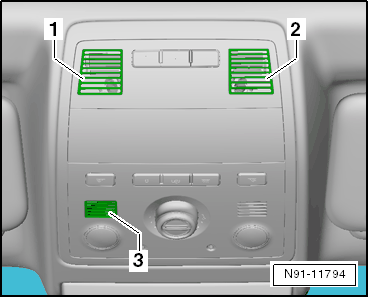

Location of the microphones in the front roof console
1 - Left Front Microphone -R140- for the voice recognition system
2 - Right Front Microphone -R141- for the telephone
3 - Interior Microphone -R74- for the passenger compartment noise compensation in the Digital Sound System Control Module -J525-
