Cell Phone Operating Electronics Control Module -J412-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The cell phone operating electronics control module is not installed in the "RNS 850".

Perform the Following Steps:

-- Turn off the ignition and all electrical equipment.

-- Move the right front seat into its highest position and the move it all the back.

-- Fold up the carpet -1- under the seat.

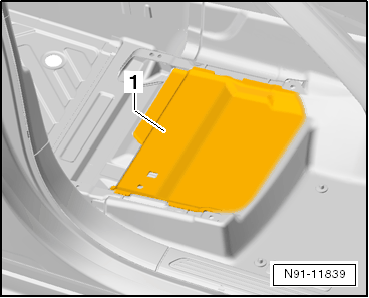

Fig 1: Fold Up The Carpet -1- Under The Seat.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the three nuts -1- and remove the control module -2-.

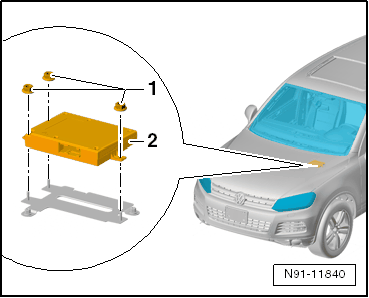

Fig 2: Identifying 3 Nuts -1- And Control Module -2-, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connectors.
