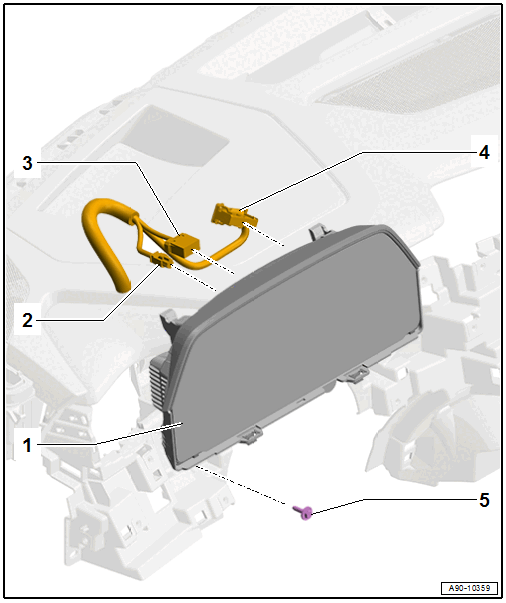

Overview - Instrument Cluster
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Instrument Cluster
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING .
- Antenna Wire
- Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps :VAS6223/9
- Connector
- For the instrument cluster
- Bolt
- 3 Nm
- Quantity: 2
