Special Tools

Special tools and workshop equipment required

• Piston Resetting Tool T10145

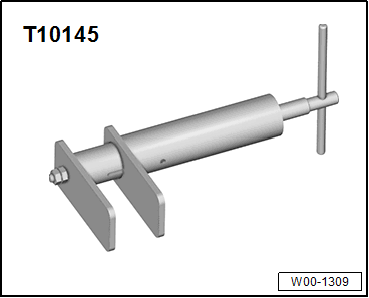

  Fig 1: Piston Resetting Tool T10145

  Courtesy of AUDI OF AMERICA, LLC
• Brake Pressure Gauge VAG1310A

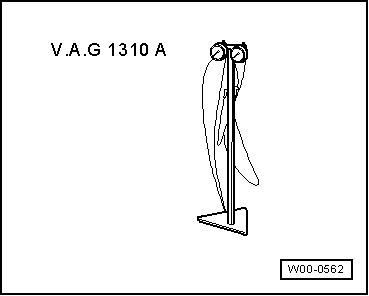

  Fig 2: Brake Pressure Gauge VAG1310 A

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1331 5-50Nm VAG1331
  Fig 3: Ident ifying Torque Wrench (5 To 50 Nm) VAG1331

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1332 40-200Nm VAG1332
• Brake Pedal Actuator VAG1869/2
  Fig 4: Brake Pedal Actuator VAG1869/2

  Courtesy of AUDI OF AMERICA, LLC
• Brake Charger/Bleeder Unit VAS5234 with Brake Bleeder Adapter VAS5234/1
  Fig 5: Brake Charger/Bleeder Unit VAS5234

  Courtesy of AUDI OF AMERICA, LLC
• Brake Servo Tester VAS6721
  Fig 6: Brake Servo Tester VAS6721

  Courtesy of AUDI OF AMERICA, LLC
• Trim Removal Wedge 3409
  Fig 7: Trim Removal Wedge 3409

  Courtesy of AUDI OF AMERICA, LLC
