Brake Line Routing

• Brakes and brake lines are delivered as ready-to-install replacement parts.
• Secure brakes and brake lines at original fastening points when installing.

Brake line routing in wheel housing to front axle

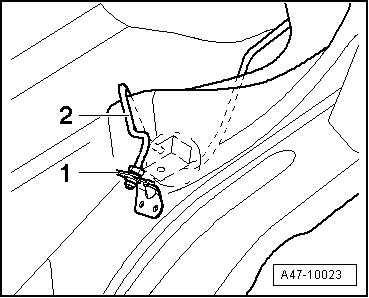

Fig 1: Identifying Brake Hose Bracket & Brake Line

Courtesy of AUDI OF AMERICA, LLC

--

-- Item -1- brake hose bracket.

-- Tighten brake line -2- to 14 Nm.

Brake line routing to rear axle

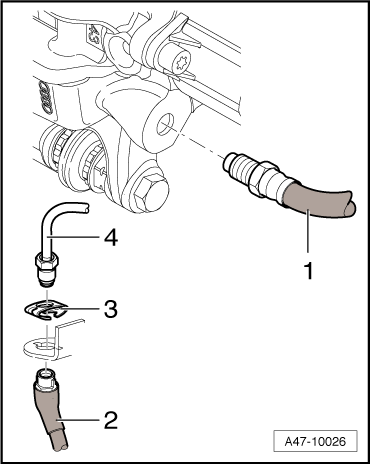

Fig 2: Brake Hose, Brake Hose Bracket, Retaining Spring & Brake Line

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the -1- brake hose in the brake caliper to 20 Nm.

-- Item -2- brake hose bracket, ensure retaining tabs are seated correctly in bracket.

-- Item -3- - retaining spring

-- Item -4- - brake line, 14 Nm.
