Brake Lamp Switch, Removing And Installing: Installing

Install in reverse order of removal. Note the following:

• The brake push rod must be engaged with the brake pedal.
• When installing switch, brake pedal must not be operated.

-- Insert the Brake Lamp Switch -F- into the mount -1- on the brake pedal.

Fig 1: Inserting Brake Lamp Switch Into Brake Pedal Mount

Courtesy of AUDI OF AMERICA, LLC

• The Brake Lamp Switch -F- must audibly engage with all three tabs.
• Do not turn the Brake Lamp Switch -F- once it is inside the mount on the brake pedal.
• The piston aligns itself automatically when inserting.

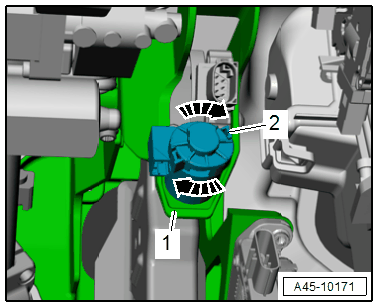

-- To attach the brake lamp switch, turn the rotating piece -2- clockwise until it stops -arrows-.

Fig 2: Inserting Brake Lamp Switch Into Brake Pedal Mount

Courtesy of AUDI OF AMERICA, LLC

Installation is performed in reverse order of removal, while noting the following:

-- Remove the footwell vent, refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

Fig 3: Identifying Footwell Vents

Courtesy of AUDI OF AMERICA, LLC

-- Install the footwell vent, refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

Install the driver side instrument panel cover, refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
