Rear Axle Toe, Adjusting: Procedure

-- Remove the nut -A- of threaded connection tie rod/subframe, and screw on new nut until stop.

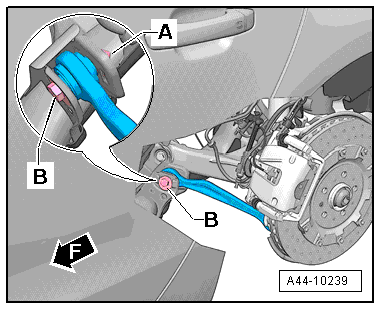

Fig 1: Identifying Bolt & Nut

Courtesy of AUDI OF AMERICA, LLC

-- Adjust toe by turning eccentric screw -B-.

Axle alignment specified values, refer to WHEEL ALIGNMENT SPECIFIED VALUES .

-- Tighten the nut -A- using the Track Rod Tool Insert T40183, refer to OVERVIEW - TRANSVERSE LINK .

-- After tightening the nut -A-, check toe value once more, refer to WHEEL ALIGNMENT SPECIFIED VALUES .

NOTE:

The maximum adjustment range is 90° to left or right of center position.

The geometric drive axle is automatically changed when individual toe settings are changed.
