Tire Pressure Monitor Reset

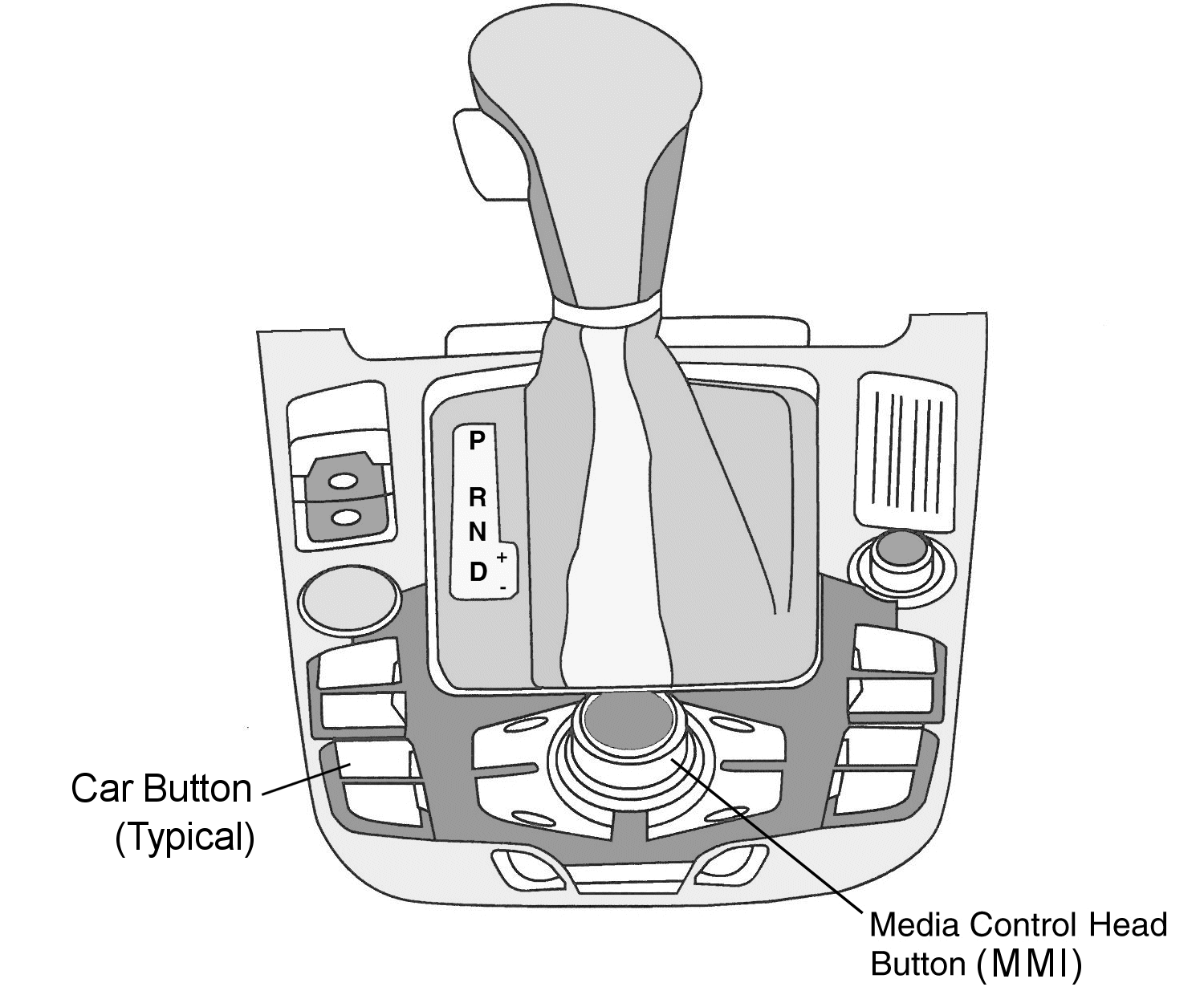

The tire pressures must be saved in either the radio or MMI (depending on equipment) each time the tire pressure is adjusted or a tire is changed. Switch the ignition on, select the "CAR" function button and select the tire pressure monitoring system using the rotary switch on the multimedia control head knob and save the tire pressure by pressing the rotary knob. See Fig 1.
Models Up To 2013
- Select: The CAR function button > TIRE PRESSURE MONITORING > STORE CURR. TIRE PRESSURES
- Or
- Select: The CAR SYSTEMS control button > TIRE PRESSURE MONITORING > STORE TIRE PRESSURES
Models From 2014 & Later
- Select: The CAR function button > TIRE PRESSURE MONITORING > STORE NOW
- Or
- Select: The CAR SYSTEMS control button > SERVICING & CHECKS > TIRE PRESSURE MONITORING > STORE TIRE PRESSURES
