Special Tools

Special Tools And Workshop Equipment Required

Analog/Digital Multimeter FLU 83III

Fig 1: Identifying Multimeter
Courtesy of AUDI OF AMERICA, LLC

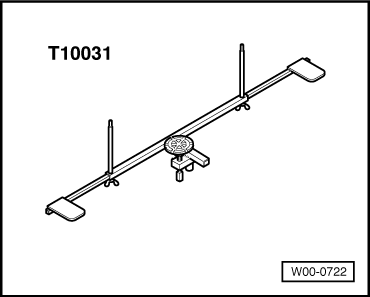

Subframe Support T10031

Fig 2: Identifying Mount T10031
Courtesy of AUDI OF AMERICA, LLC
Wrench - Fuel Sending Unit T10202

Fig 3: Identifying Wrench - Fuel Sending Unit
Courtesy of AUDI OF AMERICA, LLC

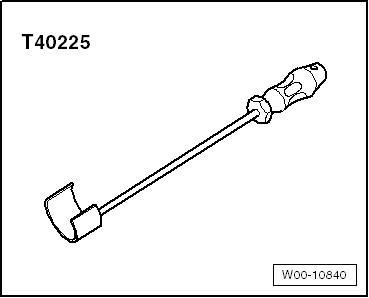

Fuel Tank Release Tool T40225

Fig 4: Identifying Fuel Tank Release Tool
Courtesy of AUDI OF AMERICA, LLC
Window Cutter VAG 1561A

Fig 5: Identifying Electric Knife VAG 1561 A
Courtesy of AUDI OF AMERICA, LLC
Window Cutter - L Blade (2 pc.) VAG 1561/22

Fig 6: Cutting Blade (L-Shaped, 25.4 mm) VAG 1561/22
Courtesy of AUDI OF AMERICA, LLC
Connector Test Set VAG 1594D

Fig 7: Identifying Connector Test Set
Courtesy of AUDI OF AMERICA, LLC

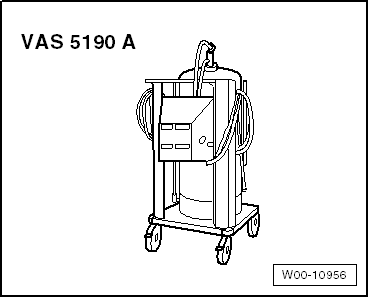

Fuel Extraction Device VAS 5190A

Fig 8: Identifying Fuel Extraction Device
Courtesy of AUDI OF AMERICA, LLC
Fuel Extraction - Adapter 4 VAS 5190/4
Engine and Gearbox Jack VAS 6931

Fig 9: Engine & Transmission Jack VAG 1383 A
Courtesy of AUDI OF AMERICA, LLC

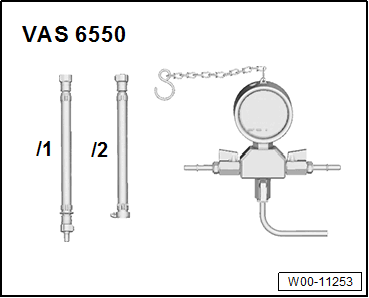

Pressure Tester Kit VAS 6550 with Pressure Tester Kit - Hose 2 VAS 6550/2

Fig 10: Identifying Pressure Tester Kit VAS 6550
Courtesy of AUDI OF AMERICA, LLC

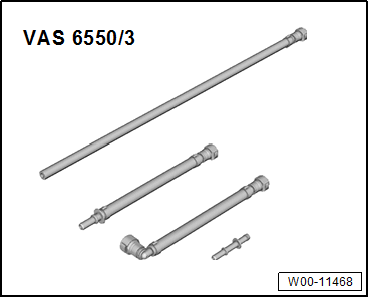

Pressure Tester Kit - Adapter Set VAS 6550/3 for vehicles with fuel supply line with hose clamp

Fig 11: Identifying Pressure Tester Kit - Adapter Set VAS 6550/3
Courtesy of AUDI OF AMERICA, LLC

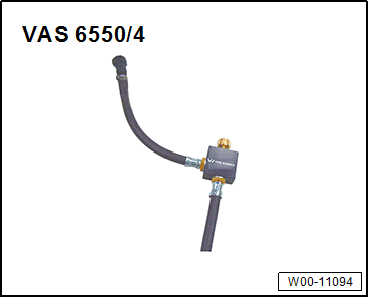

Pressure Regulator Valve VAS 6550/4

Fig 12: Identifying Pressure Regulator Valve VAS 6550/4
Courtesy of AUDI OF AMERICA, LLC
