Evaporative Purge Regulator Valve, Checking
Observe all safety precautions: SAFETY PRECAUTIONS
View clean working conditions: CLEAN WORKING CONDITIONS
Use only gold-plated terminals when servicing any component with gold-plated electrical harness connector terminals.
For wiring diagrams, component locations, and connector views, Refer to the applicable wiring diagram.
Special Tools And Workshop Equipment Required
- multimeter
- Wiring diagram.
Test requirements
- The Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80- fuse SA 11 OK.
- The ignition switched off.
Voltage for the Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80- is supplied via the Engine Component Power Supply Relay -J757-.
Test procedure
-- Perform a preliminary check to verify the customers complaint. Refer to PRELIMINARY CHECK
Start diagnosis
-- Remove the engine cover with air filter. Refer to appropriate service information.

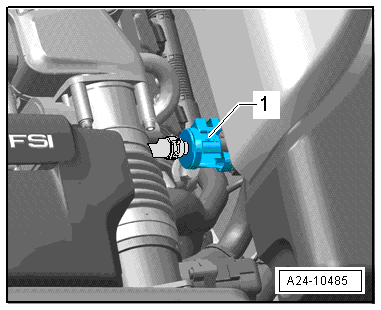

-- Disconnect the Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80- electrical harness connector -1-.
Checking internal resistance
-- Key in off position.
-- Using a multimeter, check the Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80- terminals 1 and 2 for resistance.
Specified value: 22.0 to 30.0 Ω.
If the specified value is not obtained:
-- Replace the Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-.
If the specification is obtained:
Checking voltage supply
-- Using a multimeter, check the electrical harness connector terminal 1 to 2 for voltage.
-- Turn key on.
-- Operate the starter briefly.
Specified value: battery voltage.
If the specified value was not obtained:
-- Using a multimeter, check the electrical harness connector terminal 1 for voltage.
| Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80- electrical harness connector terminal | Measure to |
|---|---|
| 1 | Engine Ground (GND) |
If the specified value is not obtained:
-- Check the wiring connection from the electrical harness connector terminal 1 to the Engine Component Power Supply Relay -J757- terminal 2/87 for an open circuit.
-- Check the electrical harness connector for damage, corrosion, loose or broken terminals.
-- If necessary, repair the wiring connection.
If the specified value was obtained:
Check Ground (GND) activation
-- Using a multimeter, check the electrical harness connector for voltage.
| Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80- electrical harness connector terminal | Measure to |
|---|---|
| 2 | Battery positive (+) |
-- Operate the starter briefly.
Specified value: battery voltage.
-- Switch the ignition off.
If the specified value was not obtained:
If the manufacturers test box is being used, perform the following step.
-- Install the test box.
If the manufacturers test box is not being used, perform the following step.
-- Remove the Motronic Engine Control Module (ECM) -J623-. Refer to appropriate service information.
-- Using a multimeter, check the Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80- electrical connector terminal 2 to Motronic Engine Control Module (ECM) -J623- electrical connector T91 for an open circuit.
| Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80- electrical harness connector terminal | Motronic Engine Control Module (ECM) -J623- electrical connector T91 terminal test box socket |
|---|---|
| 2 | 88 |
Specified value: 1.5 Ω max.
If the specification is not obtained:
-- Check the wiring for a short circuit to Battery positive (+) or an open circuit.
-- Check the electrical harness connector for damage, corrosion, loose or broken terminals.
-- If necessary, repair the wiring connection.
If the specification was obtained:
-- Replace the Motronic Engine Control Module (ECM) -J623-. Refer to appropriate service information.
-- Install the engine cover with air filter. Refer to appropriate service information.
Final procedures
After the repair work, the following work steps must be performed in the following sequence:
- Check the DTC memory. Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
- If necessary, erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
- If the DTC memory was erased, generate readiness code. Refer to READINESS CODE .
