TV Card Reader, Removing And Installing: Removing
-- Open the luggage compartment.
-- Remove the chip card.
-- Remove the luggage compartment rear trim panel, refer to Luggage Compartment Trim Panels .
-- Disconnect and remove the connection from the TV Card Reader -Ray-.

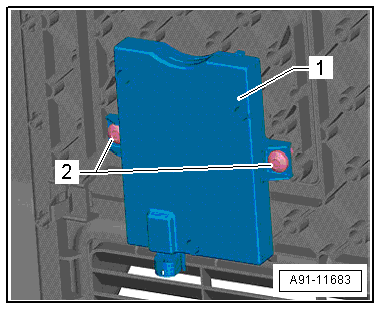

-- Remove the bolts -2- and the TV Card Reader -Ray- -1- from the luggage compartment rear wall trim panel.
