Outside Air Temperature Sensor, Removing And Installing: Removing

-- Remove the right horn, refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .

-- Squeeze the clips carefully -arrow- and remove the Outside Air Temperature Sensor -G17- -2-.

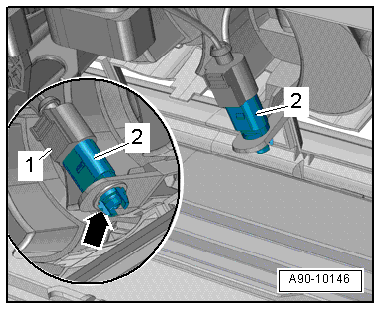

Fig 1: Identifying Outside Air Temperature Sensor
GWWA90-10146Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.
