Overview - Horn

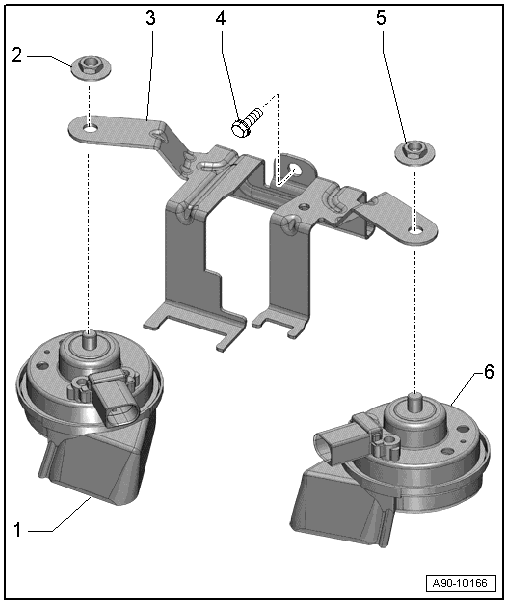

Fig 1: Identifying Horn Overview

Courtesy of AUDI OF AMERICA, LLC

Low Tone Horn -H7-
- Removing and installing, refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
Nut
- 11 Nm
Bracket
- For signal horns
- There are different versions, refer to the Parts Information.
- Removing and installing, refer to HORN BRACKET, REMOVING AND INSTALLING .
Bolt
- 11 Nm
Nut
- 11 Nm
High Tone Horn -H2-
- Removing and installing, refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
