Antenna System Component Location Overview

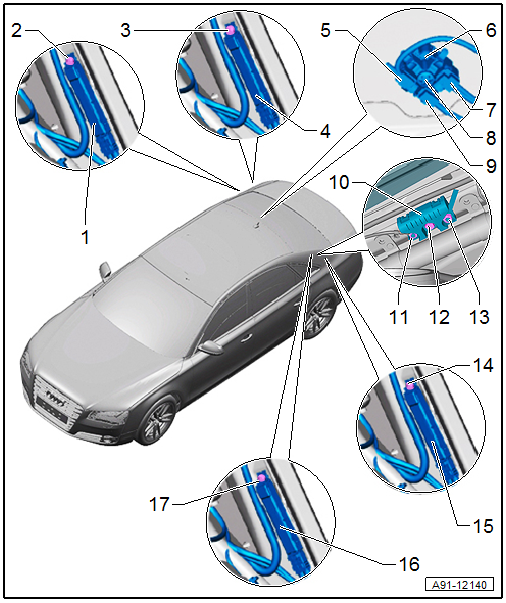

Fig 1: Antenna System Component Location Overview

Courtesy of AUDI OF AMERICA, LLC

1. Antenna Amplifier -R24-
   • Connector assignment, refer to Antenna Amplifier -R24- .
   • Removing and installing, refer to ANTENNA AMPLIFIER, REMOVING AND INSTALLING .
2. Bolt
   • 2 Nm
3. Bolt
   • 2 Nm
4. Antenna Amplifier 2 -R111-
   • Connector assignment, refer to Antenna Amplifier 2 -R111- .
   • Removing and installing, refer to ANTENNA AMPLIFIER, REMOVING AND INSTALLING .
5. Satellite Antenna -R170- SAT Jack
6. Roof Antenna -R216-
   • Removing and installing, refer to Roof Antenna -R216-, REMOVING AND INSTALLING
7. GPS connection, from Navigation System Antenna -R50-
8. Bolt
   • 6 Nm
9. GSM connection from Telephone Antenna -R65-
10. Windshield Antenna Suppression Filter -C18-
    • Removing and installing, refer to Windshield Antenna Suppression Filter -C18-, REMOVING AND INSTALLING
11. Nut
    • 9 Nm
12. Bolt
    • 9 Nm
13. Nut
    • 9 Nm
14. Bolt
    • 2 Nm
15. Antenna Amplifier 4 -R113-
    • Connector assignment, refer to Antenna Amplifier 4 -R113- .
    • Removing and installing, refer to ANTENNA AMPLIFIER, REMOVING AND INSTALLING .
16. Antenna Amplifier 3 -R112-
    • Connector assignment, refer to Antenna Amplifier 3 -R112- .
    • Removing and installing, refer to ANTENNA AMPLIFIER, REMOVING AND INSTALLING .
17. Bolt
    • 2 Nm
