Driver Assistance Systems Front Camera, Calibrating
Special tools and workshop equipment required
- Setting Device Basic Set VAS 6430/1
- Wheel Alignment Computer
Make sure the Setting Device Basic Set VAS 6430/1 is in the center position and is locked.
Make sure the Camera Control Module -J852- fits correctly in the bracket.
Perform a visual inspection to see if the camera visual area is free.
Check the DTC memory and correct any malfunctions before beginning the calibration.
There are two choices for calibrating:
The "Quick Access"
This procedure should be selected for the following activities if only the calibration will be performed.
- "No or incorrect basic setting/adaptation" is stored actively in the DTC memory.
- The Camera Control Module -J852- was removed and installed again or replaced,
- The windshield is replaced or removed,
- The control position on vehicles with air suspension was reprogrammed.
The "Complete Alignment"
This procedure should be selected for the following activities if a calibration and a suspension adjustment will be performed.
- The rear axle toe was adjusted.
- the vehicle suspension was changed, for example, changing from standard to sport suspension.
Both procedures are programmed into the axle alignment computer. The respective procedure is performed automatically. It is only necessary to select the appropriate program for the procedure that will be performed.
Calibration/Adjusting without a Previous Axle Alignment
-- Select the lane assist calibration procedure in the alignment computer.
-- Install the quick clamps on all four wheels.
-- Mount the measurement sensor to the rear wheels.
-- Perform a wheel run-out compensation and the rear wheels.
Calibrating/Adjusting with a Previous Axle Alignment
-- Connect the battery charger for the battery support mode, refer to BATTERY, STARTER, GENERATOR & CRUISE CONTROL .
-- Position the front wheels so they are straight.
-- Connect the Vehicle Diagnostic Tester to the vehicle and guide the diagnostic cable through the open window.
-- Turn off all vehicle exterior lamps.
-- Close all vehicle door.
Calibration/Adjusting Procedure with or without a Previous Axle Alignment
-- Select calibration/adjusting on the wheel alignment computer.

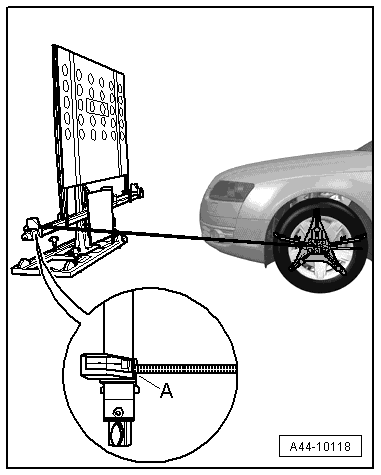

-- Position the Setting Device Basic Set VAS 6430/1 at a distance of -A- 150 cm ± 2.5 cm from the center of the wheel hub on the front wheels to the beam on the Setting Device Basic Set VAS 6430/1 as shown in the illustration.
The Setting Device Basic Set VAS 6430/1 must not be moved on the calibration beam.

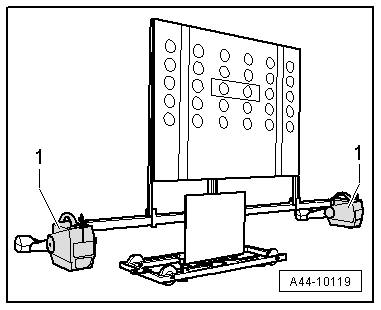

-- Mount the front wheel measuring sensors -1- to the Setting Device Basic Set VAS 6430/1.
The alignment stand must be in the lowest level position for the next step.
-- Enter the height value -A- between the Setting Device Basic Set VAS 6430/1 contact patch and the wheel contact surface as shown in the illustration and enter it in the alignment computer.

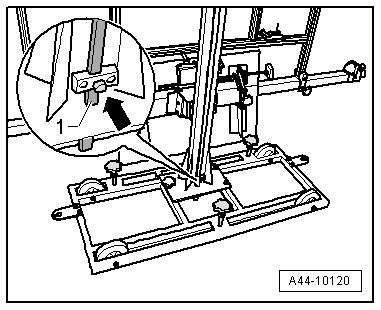

-- Loosen the bolt -arrow- and place the measuring bar -1- on the floor.

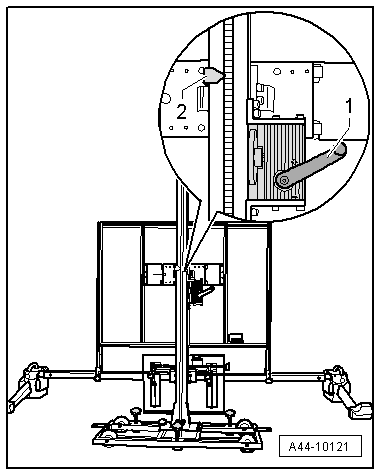

-- Adjust the calibration panel to the specified height -2- according to the alignment computer using the crank -1-.
If the specified height was reached -2-, then the measuring bar must be pushed slightly forward and secured with the locking bolt.
If in later procedure the height of the calibration board must be corrected, make sure the measuring bar is touching the ground when this is being done.

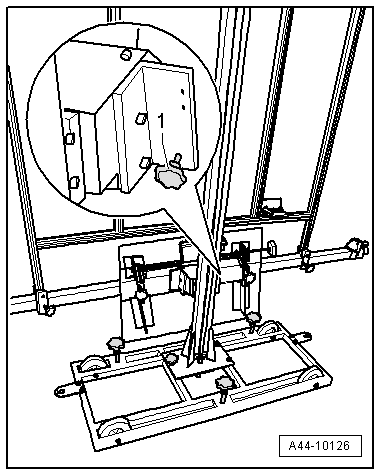

-- Level the bubble level -A- using the adjusting screw -1-.
The bubble adjustment -A- serves to compare the ground conditions.

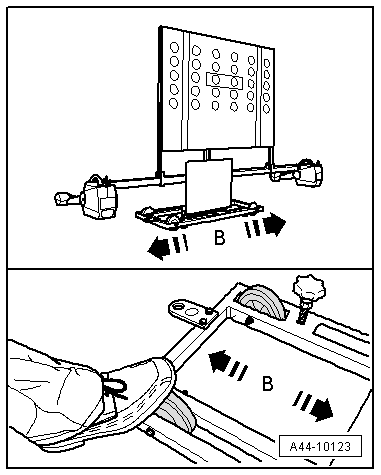

-- Move the Setting Device Basic Set VAS 6430/1 sideways -arrow B- until the display on the alignment computer is within the tolerance range.

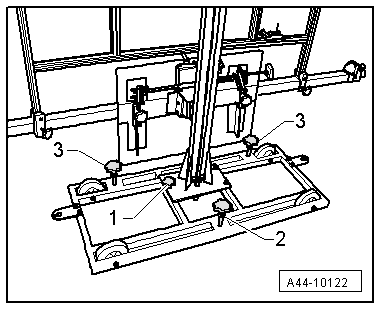

-- Secure the Setting Device Basic Set VAS 6430/1 by turning the screws gently -2- and -3- (to keep the Setting Device Basic Set VAS 6430/1 from rolling away).
-- Turn the precision adjustment screw -1- until the display on the wheel alignment computer is located within the tolerance range.
-- Level the bubble level -A- using the adjusting screw -1-.
-- Level the bubble level -B- using the adjusting screw -2-.
Further work is performed using the Vehicle Diagnostic Tester in "Guided Fault Finding".
VAS PC
-- Vehicle Diagnostic Tester Connect.
-- Select "Guided Fault Finding".
-- Press the Go to button and select the "Function/component selection" and the following tree structures one after the other:
- Body
- 01 - On Board Diagnostic (OBD) capable systems
- 5A - Driver Assistance Systems Front Camera - R242
- 5A - Driver Assistance Systems Front Camera functions
- Calibrate control module
ODIS - Offboard Diagnostic Information System
-- Vehicle Diagnostic Tester Connect.
-- Select Diagnosic operating mode and start diagnostics.
-- Select the Test plan tab
-- Select the button Individual tests and select the following tree structures one after the other:
- Body
- 01 - On Board Diagnostic (OBD) capable systems
- 5A - Driver Assistance Systems Front Camera - R242
- 5A - Driver Assistance Systems Front Camera functions
- Calibrate control module
Continuation for All Vehicle Diagnostic Testers
From here the Vehicle Diagnostic Tester advances the calibration procedure forward.
Now follow the instructions on the screen to perform the calibration.
Next, in "Guided Fault Finding", determine the height of the body.

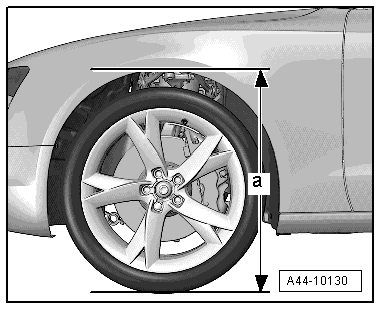

-- Determine the body height -a- at all four wheels in the center of the wheel between the wheel contact surface and the lower edge of the fender.
