Steering Column, Handling And Transporting

Correct Handling and Transport of Steering Column

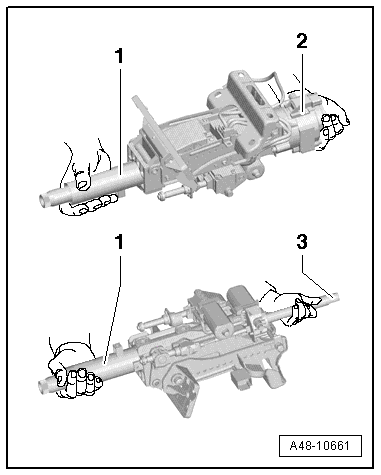

Fig 1: Identifying Correct Handling and Transport of Steering Column

Courtesy of AUDI OF AMERICA, LLC

• Transport steering column with two hands
• Hold the steering column at the top of the steering rod tube -1-, or depending on the version near the dynamic steering adjuster -2-, or at the bottom of the steering rod tube.

Incorrect Handling of Steering Column

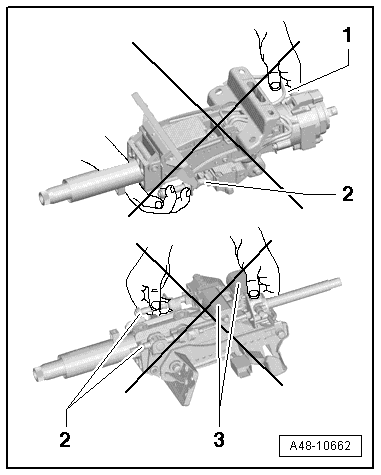

Fig 2: Identifying Incorrect Handling of Steering Column

Courtesy of AUDI OF AMERICA, LLC

Transporting at the following components leads to pre-damage to steering column:

1. Connector, wiring harness
2. Spindles for the electric steering column adjustment
3. Motors for the electric steering column adjustment
