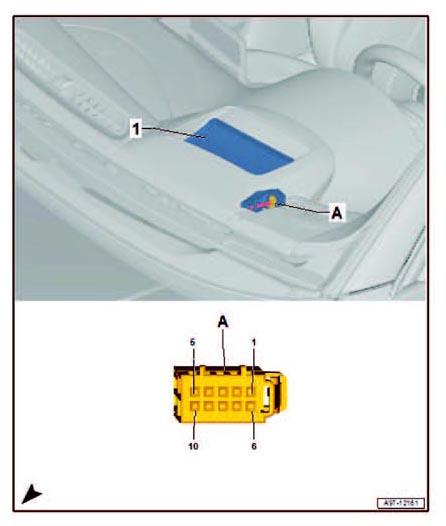

Windshield Projection Head Up Display Control Module Connector End View (J898, T10bh)
| 1 | Windshield Projection Head Up Display Control Module -J898- |
| A | 10-Pin Connector -T10bh-, black |
| -T10bh-(A) | Designation |
|---|---|
| 1 | CAN-Bus Instrument Cluster, High B674 Suspension/instrument cluster CAN bus high connection 3 (in main wiring harness) A204 Instrument cluster CAN bus high connection (in instrument panel wiring harness) Data Bus On Board Diagnostic Interface -J533- |
| 2 | CAN-Bus Instrument Cluster, Low B678 Suspension/instrument cluster CAN bus low connection 3 (in main wiring harness) A205 Instrument cluster CAN bus low connection (in instrument panel wiring harness) Data Bus On Board Diagnostic Interface -J533- |
| 3 | |
| 4 | Terminal 30, B330 Positive connection 16 (30a) in main wiring harness Fuse Panel C -SC- |
| 5 | Terminal 30, B330 Positive connection 16 (30a) in main wiring harness Fuse Panel C -SC- |
| 6 | |
| 7 | |
| 8 | |
| 9 | Terminal 31, 375 Ground connection 10 (in main wiring harness) 376 Ground Connection 11 (in main wiring harness) 639 Ground Connection (on left A-pillar) |
| 10 | Terminal 31, 375 Ground connection 10 (in main wiring harness) 376 Ground-Connection 11 (in main wiring harness) 639 Ground Connection (on left A-pillar) |
