Tire Pressure Monitoring Control Module Connector End View (J502, T12aw)
Tire Pressure Monitoring Control Module Connector End View (J502, T12aw)

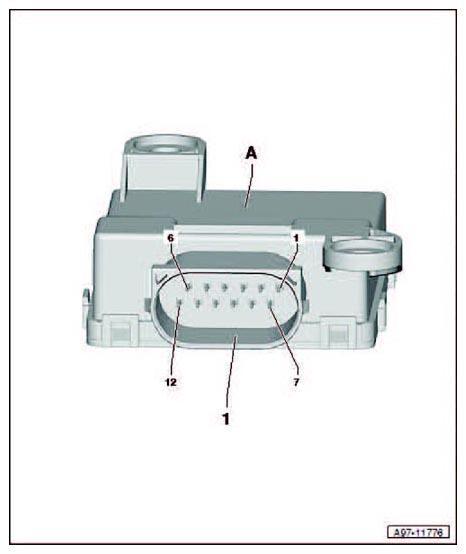

Fig 1: Tire Pressure Monitoring Control Module Connector End View (J502, T12aw)
Courtesy of AUDI OF AMERICA, LLC
A
Tire Pressure Monitoring Control Module -J502-
1
12-Pin Connector -T12aw-, black
