Subframe Mount Control Module Connector End View (J931, T28)
Subframe Mount Control Module Connector End View (J931, T28)

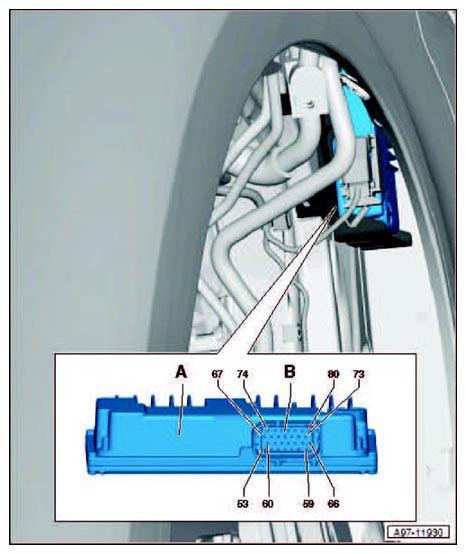

Fig 1: Subframe Mount Control Module Connector End View (J931, T28)
Courtesy of AUDI OF AMERICA, LLC
A
Subframe Mount Control Module -J931-
B
28-Pin Connector -T28-, black
