Structure-Borne Sound Control Module Connector End View (J869, T6bp)

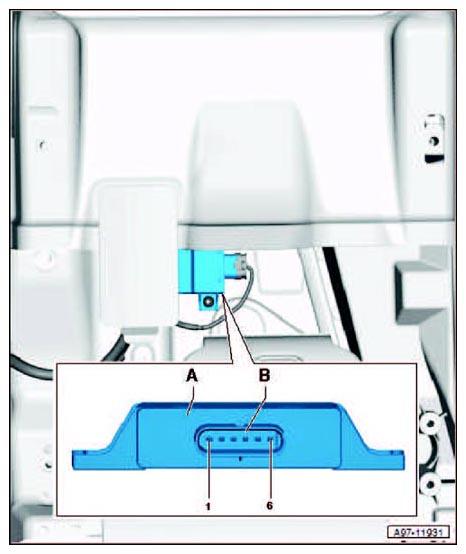

Fig 1: Structure-Borne Sound Control Module Connector End View (J869, T6bp)
G10359984Courtesy of AUDI OF AMERICA, LLC
A Structure-Borne Sound Control Module -J869-
B 6-Pin Connector -T6bp-, black
