Steering Column Electronic Systems Control Module Connector End View (J527, T4aq, T16d, T4ap)

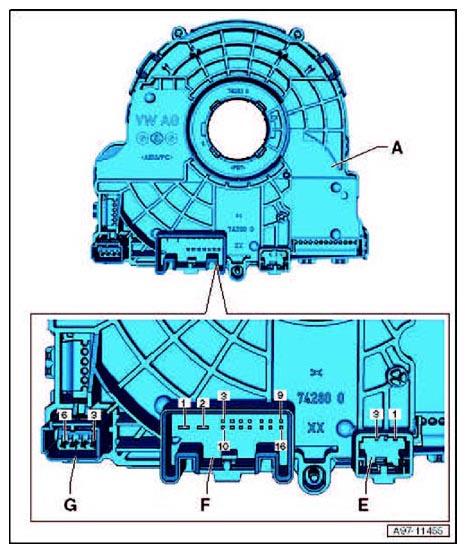

Fig 1: Steering Column Electronic Systems Control Module Connector End View (J527, T4aq, T16d, T4ap)
G10359982Courtesy of AUDI OF AMERICA, LLC
A Steering Column Electronic Systems Control Module -J527-
G 4-Pin Connector -T4aq-, yellow
F 16-Pin Connector -T16d-, black
E 4-Pin Connector -T4ap-, black
