Reducing Agent Metering System Control Module Connector End View (J880, T8au, T28a)

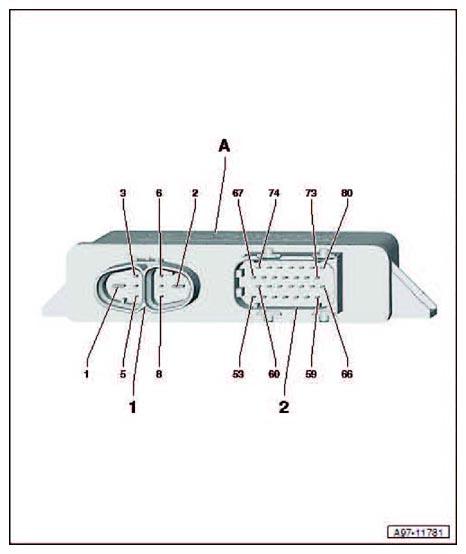

Fig 1: Reducing Agent Metering System Control Module Connector End View (J880, T8au, T28a)
G10360032Courtesy of AUDI OF AMERICA, LLC
A Reducing Agent Metering System Control Module -J880-
1 8-Pin Connector -T8au-, black
2 28-Pin Connector -T28a-, black
