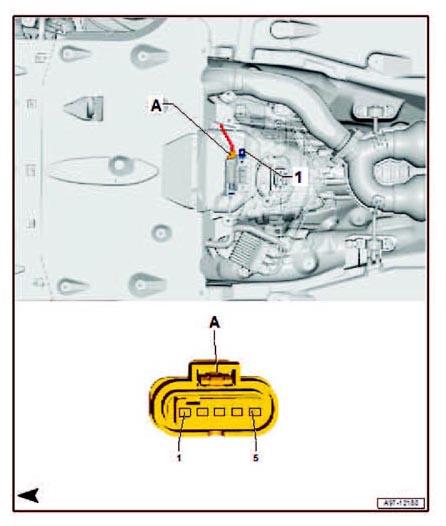

NOX Sensor Control Module Connector End View (J583, T5av)
| 1 | NOX Sensor Control Module -J583- |
| A | 5-Pin Connector -T5av-, black |
| -T5av- (A) | Designation |
|---|---|
| 1 | Terminal 87, from D189 Connection 87a (in engine pre-wiring harness) Fuse Panel A -SA- |
| 2 | Terminal 87, from D189 Ground connection 1 (in engine compartment wiring harness) 380 Ground connection 15 (in main wiring harness) 43 Ground Connection (on right lower A-pillar) |
| 3 | CAN-Bus, Low D179 Low bus connection 2 (in engine compartment wiring harness) Engine Control Module (ECM) -J623- |
| 4 | CAN-Bus, High D178 High bus connection 2 (in engine compartment wiring harness) Engine Control Module (ECM) -J623- |
| 5 |
