Memory Seat/Steering Column Adjustment Control Module Connector End View (J136, T12aa, T10m, T32i)

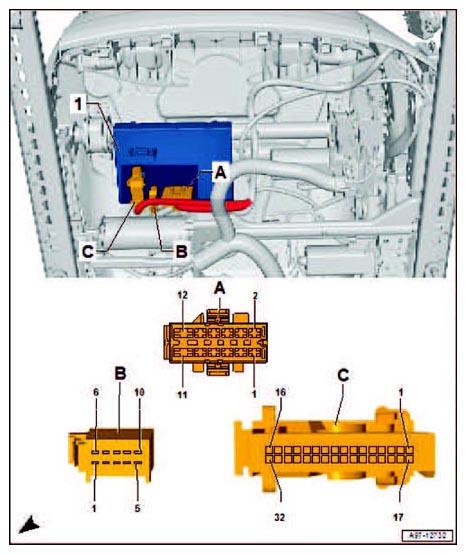

Fig 1: Memory Seat/Steering Column Adjustment Control Module Connector End View (J136, T12aa, T10m, T32i)
| 1 | Memory Seat/Steering Column Adjustment Control Module -J136- |
| A | 12-Pin Connector -T12aa-, black |
| B | 10-Pin Connector -T10m-, black |
| C | 32-Pin Connector -T32i-, grey |
| -T12aa-(A) | Designation |
|---|---|
| 1 | Driver's Backrest Adjustment Motor -V45- |
| 2 | Driver's Head Restraint Adjustment Motor -V103- |
| 3 | Driver's Seat Height Adjustment Motor -V245- |
| 4 | Driver's Head Restraint Adjustment Motor -V103- |
| 5 | Driver's Seat fore/aft Adjustment Motor -V28- |
| 6 | Driver's Backrest Adjustment Motor -V45- |
| 7 | Driver's Seat Inclination Adjustment Motor -V243- |
| 8 | Driver's Seat Height Adjustment Motor -V245- |
| 9 | Driver's Seat fore/aft Adjustment Motor -V28- |
| 10 | Driver's Seat Inclination Adjustment Motor -V243- |
| 11 | Terminal 30 from Driver's Power Seat Adjustment Circuit Breaker 1 -S44- |
| 12 | Terminal 31, to 95 Ground Connection 1 (in power seat wiring harness) 369 Ground Connection 4 (in main wiring harness) 34 Ground Connection (below driver's seat) |
| -T10m-(B) | Designation |
|---|---|
| 1 | Driver seat depth adjustment motor -V256- |
| 2 | Safety Belt Height Adjustment Motor -V233- |
| 3 | Safety Belt Height Adjustment Motor -V233- |
| 4 | Driver upper backrest adjustment motor -V258- |
| 5 | Driver seat depth adjustment motor -V256- |
| 6 | Safety Belt Height Adjustment Position Sensor -G372- |
| 7 | |
| 8 | Driver upper backrest adjustment motor -V258- |
| 9 | Safety Belt Height Adjustment Position Sensor -G372- |
| 10 |
| -T32i- (C) | Designation |
|---|---|
| 1 | |
| 2 | |
| 3 | Driver's Door Control Module -J386- |
| 4 | |
| 5 | Driver side massage function button -E670- |
| 6 | Seat Fore/Aft Adjustment Button -E418- Driver seat switch module 2 -E667- |
| 7 | Seat Height Adjustment Button -E424- Driver seat switch module 2 -E667- |
| 8 | |
| 9 | |
| 10 | |
| 11 | |
| 12 | |
| 13 | |
| 14 | |
| 15 | Comfort System CAN-Bus Low M28 CAN-Bus Low Connection - Convenience (in driver's seat adjustment wiring harness) |
| 16 | Comfort System CAN-Bus High M27 CAN-Bus High Connection - Convenience (in driver's seat-adjustment wiring harness) |
| 17 | |
| 18 | |
| 19 | |
| 20 | Head Restraint Adjustment Button -E155- Driver seat switch module -E663- |
| 21 | |
| 22 | Driver's Backrest Adjustment Switch -E96- Driver seat switch module -E663- |
| 23 | Driver's Seat Height Adjustment Switch -E364- Driver seat switch module -E663- |
| 24 | Driver's Seat Tilt Adjustment Switch -E222- Driver seat switch module -E663- |
| 25 | Driver's Seat Fore/Aft Switch -E363- Driver seat switch module -E663- |
| 26 | |
| 27 | |
| 28 | Backrest Adjustment Button -E425- Driver seat switch module 2 -E667- |
| 29 | |
| 30 | |
| 31 | |
| 32 |
