Location System Control Module Connector End View (J895, T12f)
Location System Control Module Connector End View (J895, T12f)

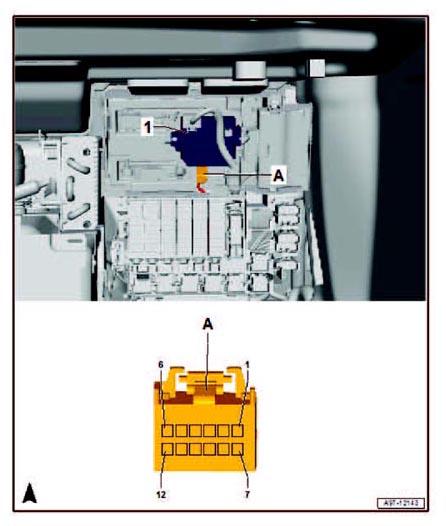

Fig 1: Location System Control Module Connector End View (J895, T12f)
Courtesy of AUDI OF AMERICA, LLC
1
Location System Control Module -J895-
A
12-Pin Connector -T12f-, brown
