Lane Change Assistance Control Module 2 Connector End View (J770, T12n)
Lane Change Assistance Control Module 2 Connector End View (J770, T12n)

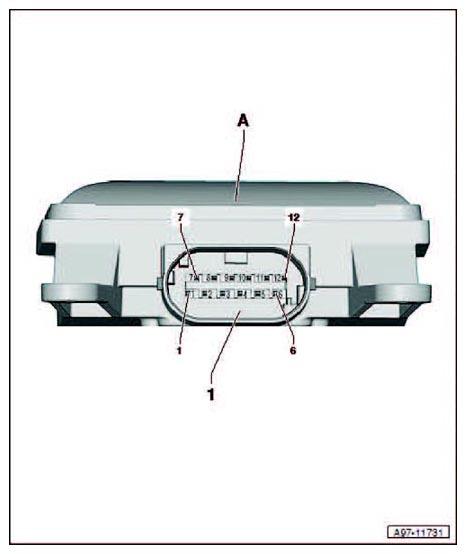

Fig 1: Lane Change Assistance Control Module 2 Connector End View (J770, T12n)
Courtesy of AUDI OF AMERICA, LLC
A
Lane Change Assistance Control Module 2 -J770-
1
12-Pin Connector -T12n-, black
