Instrument Cluster Control Module Connector End View (J285, T32, T2gd)

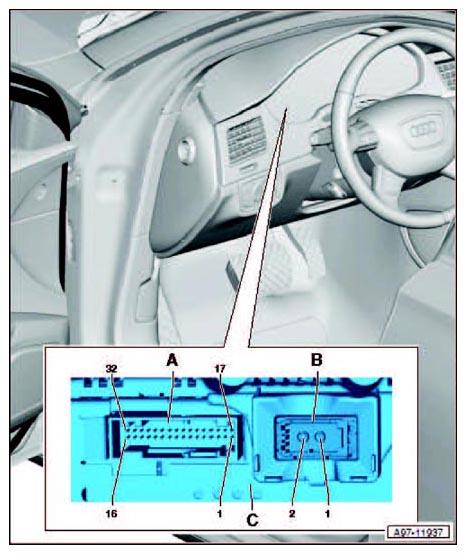

Fig 1: Instrument Cluster Control Module Connector End View (J285, T32, T2gd)

Courtesy of AUDI OF AMERICA, LLC

A	32-Pin Connector -T32-, blue
B	Double Connector -T2gd-, MOST-Bus, black
C	Instrument Cluster Control Module -J285-
	with: High Beam Indicator Lamp -K1-, ABS Warning Lamp -K47-, Left Turn Signal Indicator Lamp -K261-, display unit in instrument cluster -Y24-, Airbag indicator lamp -K75-, Diesel electronics indicator lamp -K104-, Engine Electronics Warning Lamp -K149-, Fuel Gauge -G1-, Right Turn Signal Indicator Lamp -K262-
