Heated Windshield Control Module Connector End View (J505, T4em)

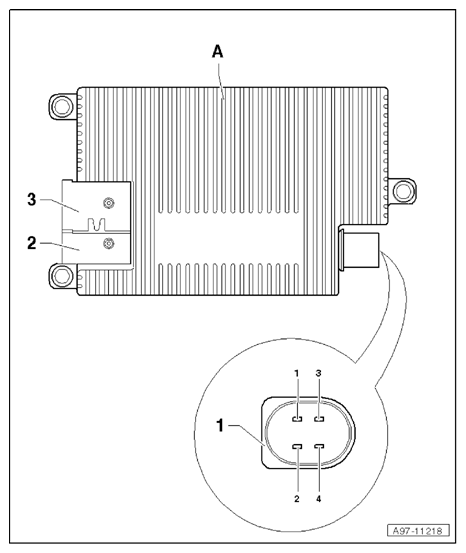

Fig 1: Heated Windshield Control Module Connector End View (J505, T4em)

Courtesy of AUDI OF AMERICA, LLC

A	Heated Windshield Control Module -J505-
1	4-Pin Connector -T4em-, black
2	B1, terminal 30
3	G1, terminal 31
