Fuel Tank Lead Detection Control Module Connector End View (J909, T5p)
Fuel Tank Lead Detection Control Module Connector End View (J909, T5p)

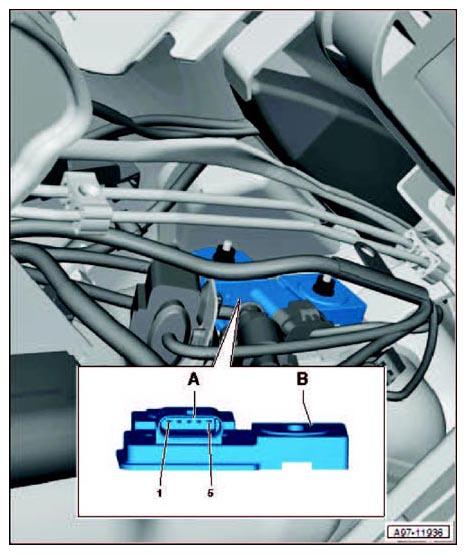

Fig 1: Fuel Tank Lead Detection Control Module Connector End View (J909, T5p)
Courtesy of AUDI OF AMERICA, LLC
A
5-Pin Connector -T5p-, black
B
Fuel Tank Lead Detection Control Module -J909-
