Electronic Steering Column Lock Control Module Connector End View (J764, T6z)

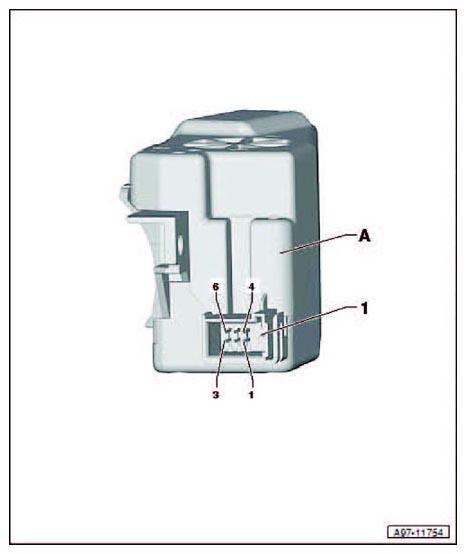

Fig 1: Electronic Steering Column Lock Control Module Connector End View (J764, T6z)
G10359975Courtesy of AUDI OF AMERICA, LLC
A Electronic Steering Column Lock Control Module -J764-
1 6-Pin Connector -T6z-, black
