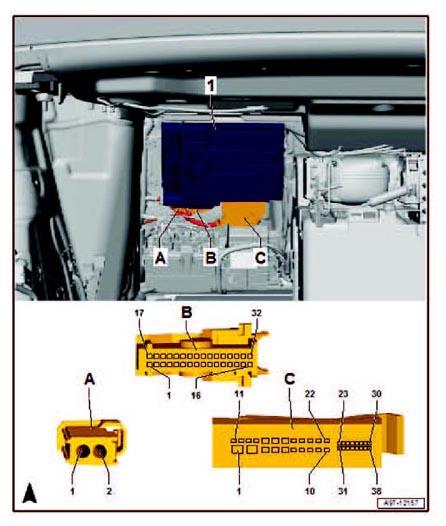

Digital Sound System Control Module Connector End View (J525, T2co, T32h, T38)
| 1 | Digital Sound System Control Module -J525- |
| A | Double Connector -T2co-, MIOST-Bus, black |
| B | 32-Pin Connector -T32h- |
| C | 38-Pin Connector -T38- |
| -T32h- (B) | Designation | -T38- (C) | Designation |
|---|---|---|---|
| 1 | Digital Sound System Control Module 2 -J787- | 1 | Terminal 30, from Fuse Panel F -SF- |
| 2 | Digital Sound System Control Module 2 -J787- | 2 | Terminal 31, to 733 Ground Connection 3, in luggage compartment, left |
| 3 | Digital Sound System Control Module 2 -J787- | 3 | Left Front Midrange Speaker -R103- |
| 4 | Digital Sound System Control Module 2 -J787- | 4 | Right Front Midrange Speaker -R104- |
| 5 | Digital Sound System Control Module 2 -J787- | 5 | Left Rear Midrange Speaker -R105- |
| 6 | Left center microphone -R142- | 6 | Right Rear Midrange Speaker -R106- |
| 7 | Right center microphone -RMS- | 7 | Center speaker -R208- |
| 8 | Left rear microphone -R144- | 8 | Center speaker 2 -R219- |
| 9 | Inside Microphone -R74- | 9 | Left Rear Treble Speaker 2 -R217- |
| 10 | Right rear microphone -R145- | 10 | Right Rear Treble Speaker 2 -R218- |
| 11 | Ground-shielding | 11 | |
| 12 | Engine Control Module (ECM) -J623-Subframe Mount Control Module -J931- | 12 | |
| 13 | 13 | ||
| 14 | Digital Sound System Control Module 2 -J787- | 14 | |
| 15 | 15 | Left Front Midrange Speaker -R103- | |
| 16 | Digital Sound System Control Module 2 -J787- | 16 | Right Front Midrange Speaker -R104- |
| 17 | Digital Sound System Control Module 2 -J787- | 17 | Left Rear Midrange Speaker -R105- |
| 18 | Digital Sound System Control Module 2 -J787- | 18 | Right Rear Midrange Speaker -R106- |
| 19 | Digital Sound System Control Module 2 -J787- | 19 | Center speaker -R208- |
| 20 | Digital Sound System Control Module 2 -J787- | 20 | Center speaker 2 -R219- |
| 21 | Digital Sound System Control Module 2 -J787- | 21 | Left Rear Treble Speaker 2 -R217- |
| 22 | Left center microphone -R142- | 22 | Right Rear Treble Speaker 2 -R218- |
| 23 | Right center microphone -RMS- | 23 | Left Front Treble Speaker -R20- |
| 24 | Left rear microphone -R144- | 24 | Right Front Treble Speaker -R22- |
| 25 | Inside Microphone -R74- | 25 | Left Rear Treble Speaker -R14- |
| 26 | Right rear microphone -RMS- | 26 | Right Rear Treble Speaker -R16- |
| 27 | 27 | Left effects speaker -R209- | |
| 28 | Terminal 31, to 733 Ground Connection 3, in luggage compartment, left | 28 | Right effects speaker -R210- |
| 29 | Ringbreak Diagnosis Wire B444 OBD connection 1 (in main wiring harness) Data Bus On Board Diagnostic Interface -J533- |
29 | |
| 30 | Digital Sound System Control Module 2 -J787- | 30 | |
| 31 | 31 | Left Front Treble Speaker -R20- | |
| 32 | Digital Sound System Control Module 2 -J787- | 32 | Right Front Treble Speaker -R22- |
| 33 | Left Rear Treble Speaker -R14- | ||
| 34 | Right Rear Treble Speaker -R16- | ||
| 35 | Left effects speaker -R209- | ||
| 36 | Right effects speaker -R210- | ||
| 37 | |||
| 38 |
