Comfort System Central Control Module Connector End View (J393, T32e, T32c, T2a, T17d, T32d, T17e)

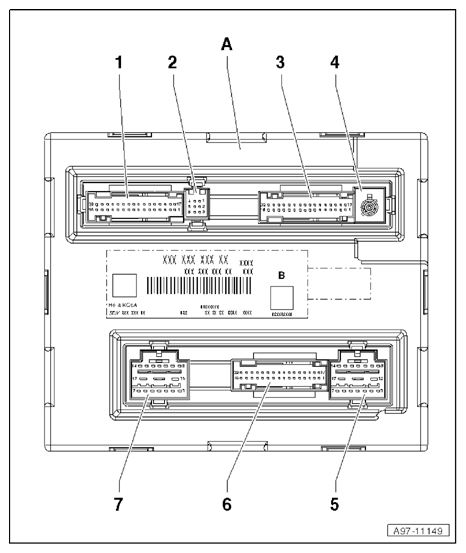

Fig 1: Comfort System Central Control Module Connector End View (J393, T32e, T32c, T2a, T17d, T32d, T17e)
| A | Comfort System Central Control Module -J393- |
| 1 | 32-Pin Connector -T32e-, blue |
| 2 | Not used |
| 3 | 32-Pin Connector -T32c-, grey |
| 4 | Double Connector -T2a-, bluegrey |
| 5 | 17-Pin Connector -T17d-, black |
| 6 | 32-Pin Connector -T32d-, black |
| 7 | 17-Pin Connector -T17e-, brown |
