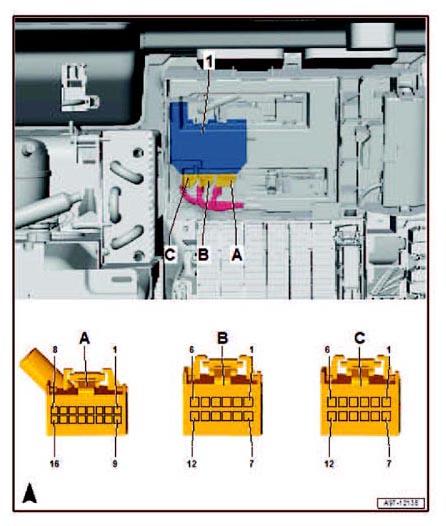

Comfort System Central Control Module 2 Connector End View (J773, T16o, T12ag, T12ah)
| 1 | Comfort System Central Control Module 2 -J773- |
| A | 16-Pin Connector -T16o-, brown |
| B | 12-Pin Connector -T12ag-, brown |
| C | 12-Pin Connector -T12ah-, black |
| -T16o-(A) | Designation | -T12ag- (B) | Designation | -T12ah-(C) | Designation |
|---|---|---|---|---|---|
| 1 | Left Front Footwell Illumination -L151- | 1 | Terminal 31, to 390 Ground Connection 25 (in main wiring harness) 391 Ground Connection 26 (in main wiring harness) 675 Ground Connection 2 (in right luggage compartment) |
1 | Right Rear Door Ambient Lighting -L167- |
| 2 | Left Front Door Ambient Lighting -L158- | 2 | Fiber optic cable for rear center console ambient lighting -W75- | 2 | |
| 3 | Left Front Door Ambient Lighting -L158- | 3 | Terminal 30, from Fuse Panel F -SF- | 3 | Right Rear Footwell Illumination -L107- |
| 4 | Left Rear Footwell Illumination -L106- | 4 | Terminal 30, from Fuse Panel F -SF- | 4 | Right Front Door Ambient Lighting -L179- |
| 5 | Fiber optic cable for front center console ambient lighting -W74- | 5 | Right Rear Door Ambient Lighting -L167- | 5 | Right Front Door Ambient Lighting -L179- |
| 6 | Left Rear Door Ambient Lighting -Lies- | 6 | CAN-Bus, Low Wiring junction for convenience CAN bus, Low -TV38- | 6 | Right Front Footwell Illumination -L152- |
| 7 | Left Rear Door Ambient Lighting -Lies- | 7 | 7 | Right Rear Door Ambient Lighting -L167- | |
| 8 | Fiber optic cable for front center console ambient lighting -W74- | 8 | Fiber optic cable for rear center console ambient lighting -W75- | 8 | Fiber optic cable for front center console ambient lighting -W74- |
| 9 | Left Front Footwell Illumination -L151- | 9 | 9 | Right Rear Footwell Illumination -L107- | |
| 10 | Left Front Door Ambient Lighting -L158- | 10 | Fiber optic cable for rear center console ambient lighting -W75- | 10 | Fiber Optics for Ambient Illumination of Front Right Panel Trim -W68- |
| 11 | Fiber Optics for Ambient Illumination of Front Left Panel Trim -W67- | 11 | Fiber Optics for Ambient Illumination of Rear Right Panel Trim -W70- | 11 | Right Front Door Ambient Lighting -L179- |
| 12 | Left Rear Footwell Illumination -L106- | 12 | CAN-Bus, High Wiring junction for convenience CAN bus, High -TV34- | 12 | Right Front Footwell Illumination -L152- |
| 13 | |||||
| 14 | Left Rear Door Ambient Lighting -L166- | ||||
| 15 | Fiber Optics for Ambient Illumination of Rear Left Panel Trim -W69- | ||||
| 16 |
