Camera Control Module Connector End View (J852, T5m, T12o)
Camera Control Module Connector End View (J852, T5m, T12o)

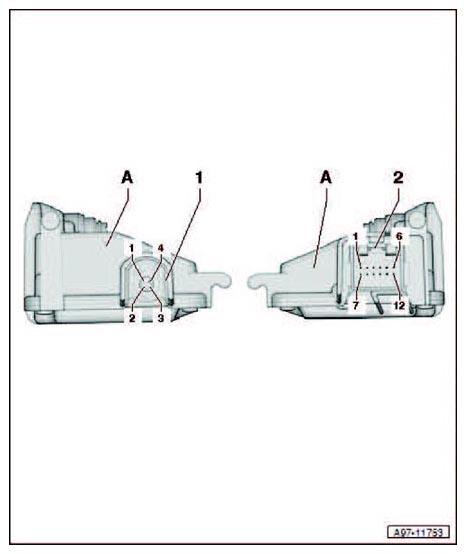

Fig 1: Camera Control Module Connector End View (J852, T5m, T12o)
Courtesy of AUDI OF AMERICA, LLC
A
Camera Control Module -J852-
1
5-Pin Connector -T5m-, black, Image Processing Control Module -J851-
2
12-Pin Connector -T12o-, black
