Left And Right Front Bass Speaker -R21- / -R23-, Removing And Installing, Bang & OLUFSEN: Removing

-- Remove the front door trim panel, refer to Front Door Trim .

-- Release and disconnect the connector -5- from the Left Front Bass Speaker -R21- -6-.

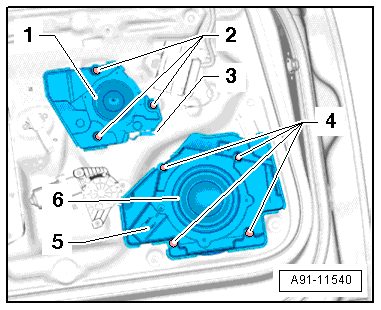

Fig 1: Identifying Connector -3- From Left Front Midrange Speaker -R103- -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -4-.

-- Remove the Left Front Bass Speaker -R21- -6-.
